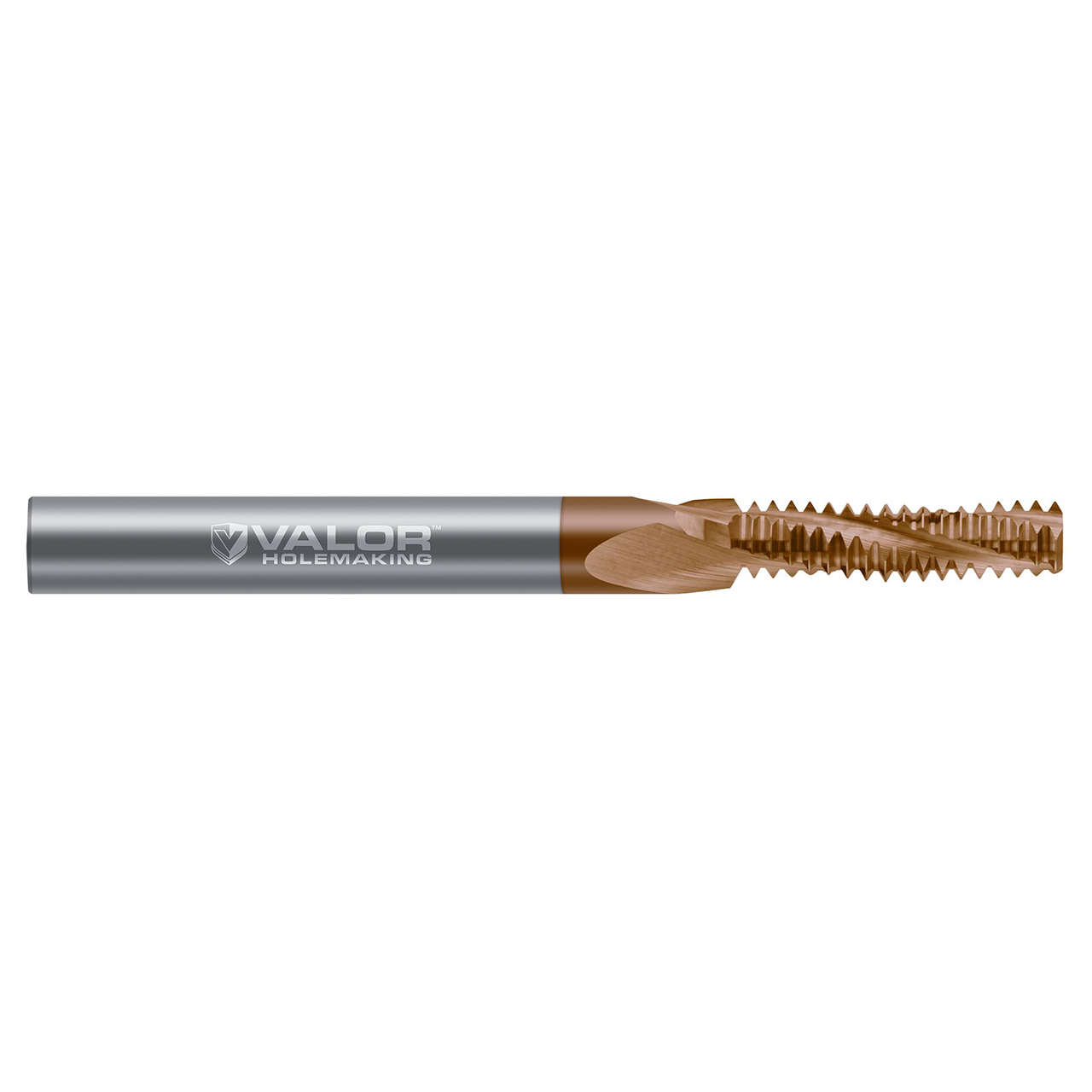

Valor V659859-X | 0.2450" Cutter Diameter x 0.3125" (5/16) Shank x 0.9840" (63/64) LOC 3 Flute Val-Max X Coated Helical Flute Thread Mill

$270.60
Brand:
Valor
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2450"
Cutter Diameter (mm):
6.22mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Number of Flutes:
3
Length of Cut (Inch):
63/64"
Length of Cut (Decimal Inch):
0.9840"
Length of Cut (mm):
24.99mm
Finish/Coating:
Val-Max X
SKU:
10271307
Weight:
1.23 LBS
Shipping:
Free Shipping

Specifically designed for deep threaded applications, this offering of top shelf thread mills features long flute geometry and increased cutter diameter sizes, allowing for maximum strength while achieving 60 percent threads.

Features:

  • Excellent in deep threading metric applications
  • Designed to mill right hand and left hand internal 60 Degree metric threads
  • Able to cut larger threads of the same pitch
  • Offered in 3 and 4 helical flutes
  • Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV659859-X
Cutter Diameter (Inch)0.2450"
Length of Cut (Inch)0.9840" (63/64)
Shank Diameter (Inch)0.3125" (5/16)
Overall Length (Inch)2.5000" (2-1/2)
SizeM8-1.25
Included Angle60 Degree
MetricN
Number of Flutes3
CoatingVal-Max X
