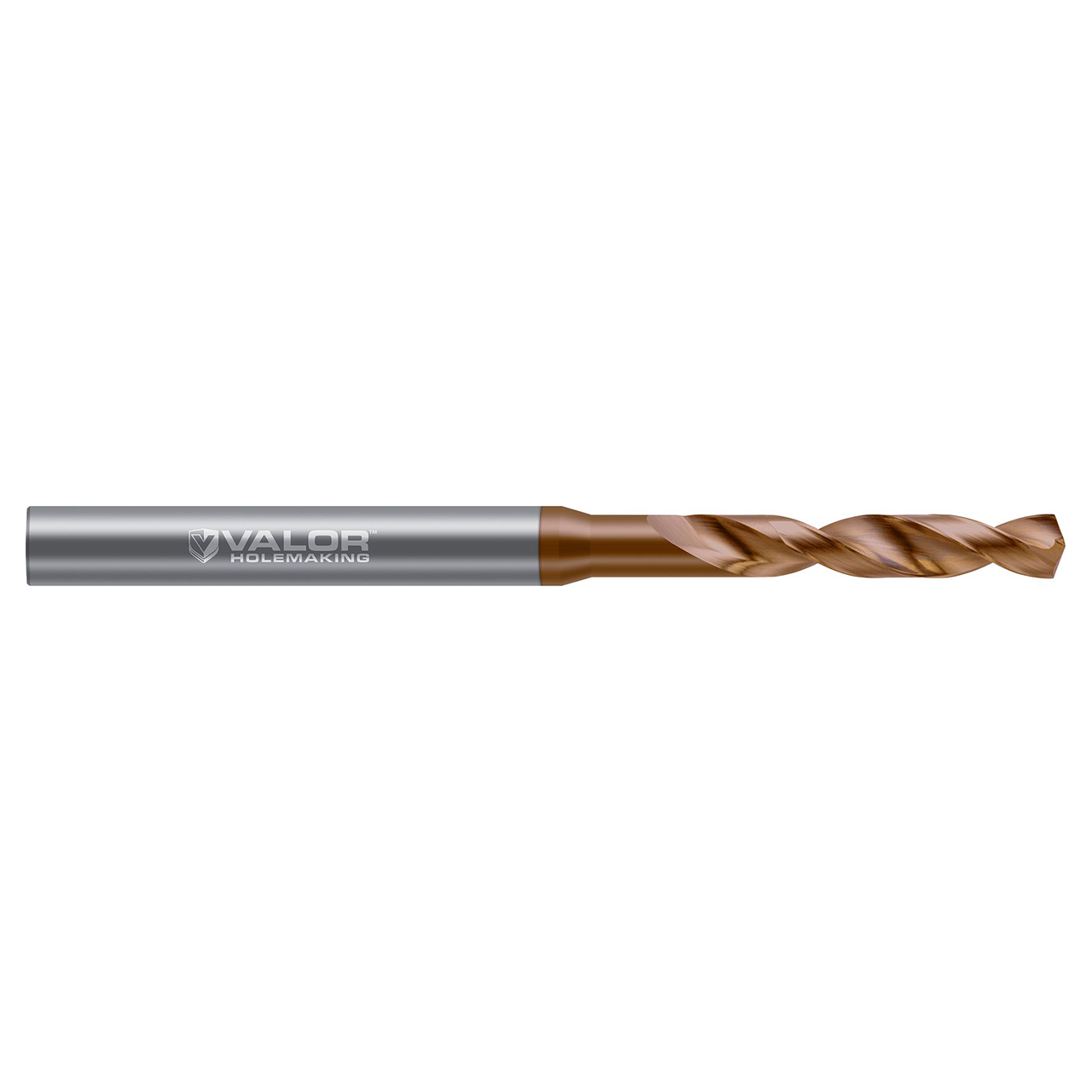

Gift yourself best-in-class performance in 4140 Steel with this fully stocked offering of solid carbide high performance drills, engineered with double margin geometry for impressive performance and stability.
Features:
- Exceptional design for precision drilling in 4140 steel
- Provides excellent performance in stainless steels and cast iron
- Engineered double margin geometry provides performance and stability when drilling intersecting holes and/or exiting holes on inclined or irregular surfaces
- Pre and post polish process delivers reduced friction and ensures outstanding chip management
- 140 Degree point angle with 4-facet geometry for improved self-centering
- h6 shank tolerance for high precision tool holders
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V984655-X |
| Drill Diameter (Inch) | 0.4016" |
| Drill Diameter (mm) | 10.200mm |
| Drill Length (mm) | 81.60mm |
| Flute Length (Inch) | 3.661" |
| Flute Length (mm) | 92.98mm |
| End Length (mm) | 1.86mm |
| Shank Diameter (mm) | 12.000mm |
| Overall Length (mm) | 150.000mm |
| LOC Multiple | (8x) |
| Point Angle | 140 Degree |
| Metric | Y |
| Coolant Through | N |
| Number of Flutes | 2 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Flute Length (Inch):
3-1/2"
Flute Length (Decimal Inch):
3.4787"
Flute Length (mm):
88.36mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
5.9055"
Overall Length (mm):
150.00mm
Coating:
Val-Max X
Coolant Through:
No
interval quantity:
1
