Product Specifications
| ETP Number | GMG40060 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.5118" |
| Length of Cut (Inch) | 22/43" |
| Length of Cut (mm) | 13.00mm |
| Length Below Shank (Decimal Inch) | 0.7874" |
| Length Below Shank (Inch) | 37/47" |
| Length Below Shank (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 2.2441" |
| Overall Length (Inch) | 2-21/86" |
| Overall Length (mm) | 57.00mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (mm) | 0.50mm |
| Number of Flutes | 4 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

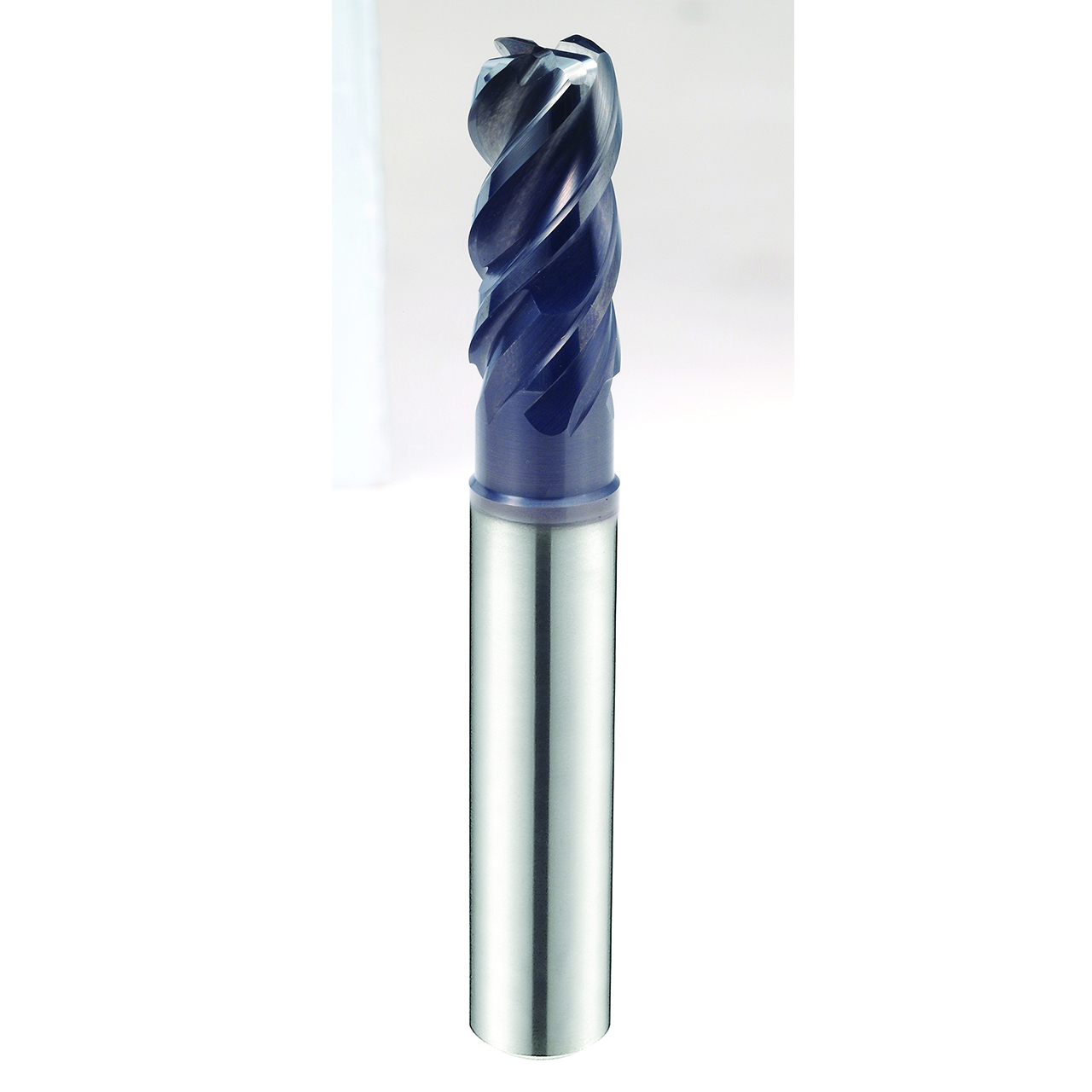

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
13/55"
Cutting Diameter (Decimal Inch):
0.2360"
Cutting Diameter (mm):
6.00mm
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2360"
Shank Diameter (mm):
6.00mm
Length of Cut (Inch):
22/43"
Length of Cut (Decimal Inch):
0.5110"
Length of Cut (mm):
13.00mm
Overall Length (Inch):
2-21/86"
Overall Length (Decimal Inch):
2.2440"
Overall Length (mm):
57.00mm
Number of Flutes:
4
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
Y-Coating
