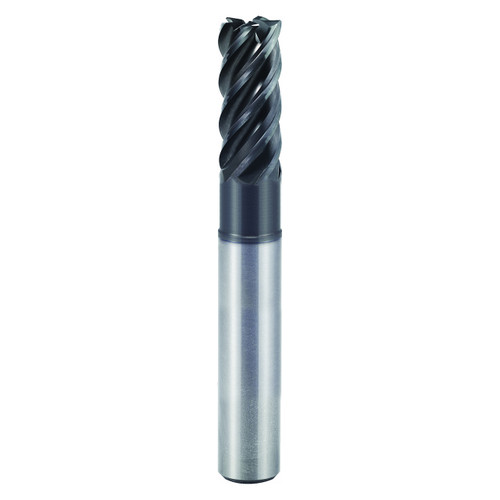

Product Specifications
| ETP Number | UGMH07012 |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.2188" |
| Length of Cut (Inch) | 7/32" |
| Length of Cut (mm) | 5.56mm |
| Length Below Shank (Decimal Inch) | 0.5000" |
| Length Below Shank (Inch) | 1/2" |
| Length Below Shank (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |
| Product Type | Square End Mill |
