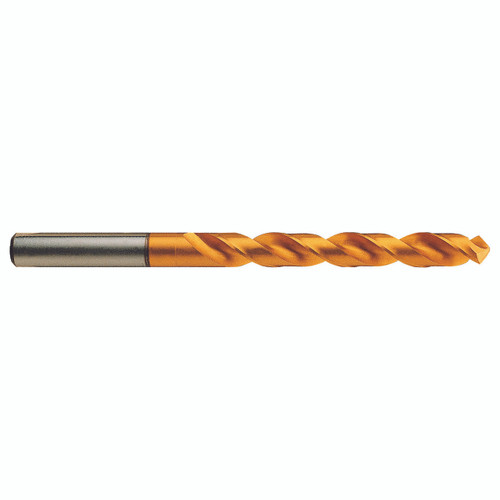

YG1 0451KCN | 0.1772" Diameter x 0.1772" Shank x 3.5827" OAL 120 Degree 2 Flute TiN Coated HSS EX Jobber Length Drill Bit

$12.02
Brand:
YG1
Drill Bit Size (Inch):
14/79"
Drill Bit Size (Decimal Inch):
0.1772"
Drill Bit Size (mm):
4.50mm
Overall Length (Inch):
3-7/12"
Overall Length (Decimal Inch):
3.5827"
Overall Length (mm):
91.00mm
Cutting Direction:
Right
Material:
HSS EX
Finish/Coating:
TiN
Coolant Through:
No
SKU:
10026902
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number0451KCN
Diameter (Inch)14/79"
Diameter (Decimal Inch)0.1772"
Diameter (mm)4.50mm
Shank Diameter (Inch)14/79"
Shank Diameter (Decimal Inch)0.1772"
Shank Diameter (mm)4.50mm
Flute Length (Inch)1-17/20"
Flute Length (Decimal Inch)1.8504"
Flute Length (mm)47.00mm
Overall Length (Inch)3-7/12"
Overall Length (Decimal Inch)3.5827"
Overall Length (mm)91.00mm
Point Length (Decimal Inch)0.0511"
Point Length (mm)1.30mm
Number of Flutes2
SeriesDJ544
Point Angle120 Degree
Helix Angle38 Degree
Length/DiameterJobber
Shank Toleranceh7
Coolant ThroughNo
CoatingTiN
MaterialHSS EX
Hole Toleranceh8
ApplicationP,M
Cutting DirectionRight
Blank StandardDIN6535
