Product Specifications
| EDP Number | 45301CC |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.5625" |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (mm) | 79.38mm |
| Ball Nose Radius (Decimal Inch) | 0.1563" |
| Ball Nose Radius (mm) | 3.97mm |
| Series | E2112 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 5/32" |
| Coating | TiCN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

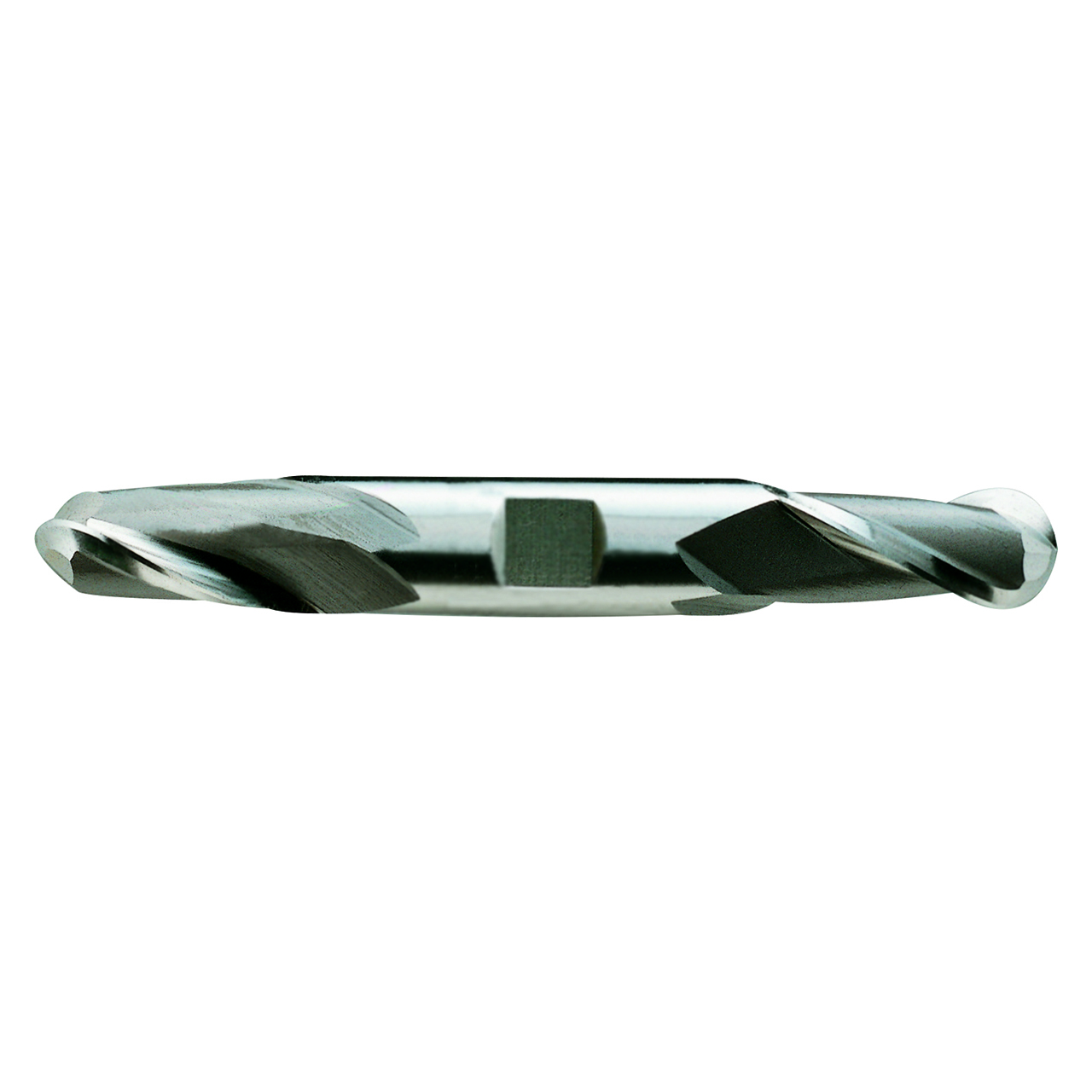

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
