Product Specifications
| Manufacturer Part Number | 52000138 |
| Thickness (Inch) | 23/73" |
| Thickness (Decimal Inch) | 0.315" |
| Thickness (mm) | 8.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.40mm |
| Edge Length (Inch) | 37/47" |
| Edge Length (Decimal Inch) | 0.787" |
| Edge Length (mm) | 20.00mm |
| Depth of Cut (mm) | 19.00mm |
| Number of Cutting Edges | 2 |
| Chipbreaker Geometry | N |
| Wiper Edge Clearance (Degree) | 15 Degree |
| Grade | YG602 |
| Coating | TiAlN |
| Material | Carbide |

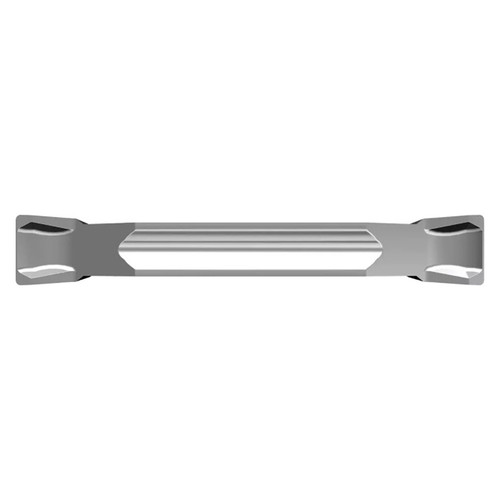

| Product Type | Parting & Grooving Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thickness (Inch):
23/73"
Thickness (Decimal Inch):
0.3150"
Thickness (mm):
8.00mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.40mm
Grade:
YG602
Finish/Coating:
TiAlN
Material:
Carbide
Number of Cutting Edges:
2
interval quantity:
10
