Product Specifications
| EDP Number | 56254CF |
| Diameter (Decimal Inch) | 0.0469" |
| Diameter (Inch) | 3/64" |
| Diameter (mm) | 1.19mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1406" |
| Length of Cut (Inch) | 9/64" |
| Length of Cut (mm) | 3.57mm |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (mm) | 57.15mm |
| Ball Nose Radius (Decimal Inch) | 0.0234" |
| Ball Nose Radius (mm) | 0.60mm |
| Series | E2013 |
| Shank Style | Plain |
| Helix Angle | 39 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 2/85" |
| Coating | TiAIN F |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
TiAIN F
Cutting Direction:

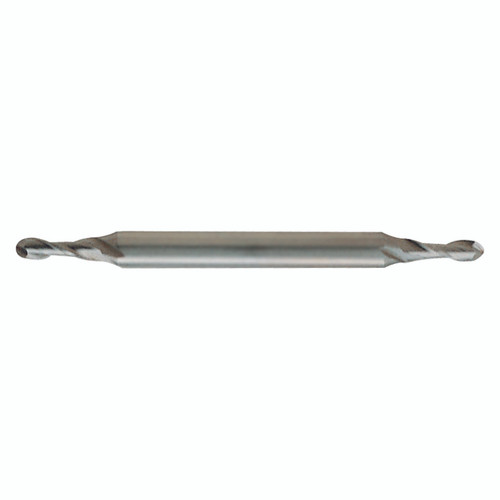

HSSCo8 & HSS 2 Flute Miniature Regular Length Ball Nose Double
Helix Angle:
39 Degree
Application:
Center Cutting
interval quantity:
