Product Specifications
| EDP Number | 57561TF |
| Diameter (Decimal Inch) | 0.1563" |
| Diameter (Inch) | 5/32" |
| Diameter (mm) | 3.97mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.3125" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Corner Radius (Decimal Inch) | 0.0090" |
| Corner Radius (Inch) | 8/35" |
| Corner Radius (mm) | 0.23mm |
| Number of Flutes | 3 |
| Series | E5075 |
| Helix Angle (Degree) | 35 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Stub |
| Application | P,M |
| Cutting Direction | Right Hand |

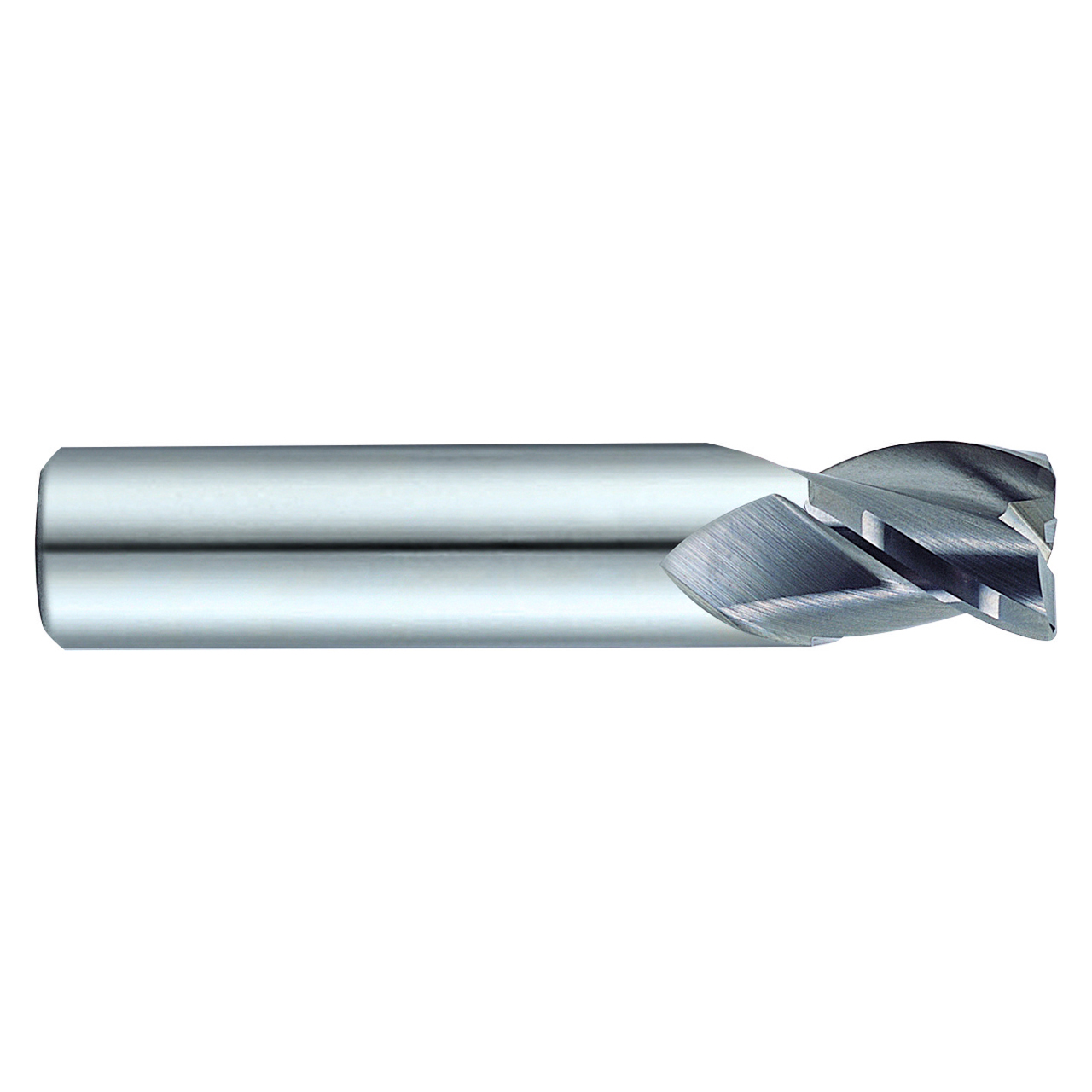

| Product Type | Corner Radius End Mill |
