Product Specifications
| EDP Number | 83904TF |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall-Length-(Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Helix Angle (Degree) | 50 Degree |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5059 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Long |
| End Type | Single End |

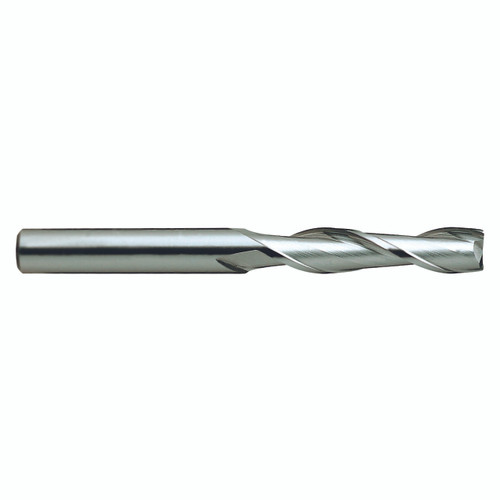

| Product Type | Square End Mill |
