Product Specifications
| # Manufacturer Number | 93133 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Overall Length (Decimal Inch) | 7.1250" |
| Overall Length (Inch) | 7-1/8" |
| Overall Length (mm) | 180.98mm |
| Ball Nose Radius (Decimal Inch) | 0.5000" |
| Ball Nose Radius (Inch) | 1/2" |
| Ball Nose Radius (mm) | 12.70mm |
| Number of Flute | 2 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM209 |

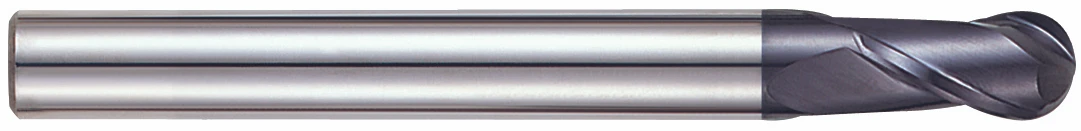

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.80mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
7-1/8"
Overall Length (Decimal Inch):
7.1250"
Overall Length (mm):
180.98mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Finish/Coating:
AlTiN
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Center Cut
Application:
P
