Product Specifications
| Manufacturer Part Number | AR022C |
| Bore Diameter (Inch) | 5/16" |
| Bore Diameter (Decimal Inch) | 0.3130" |
| Bore Diameter (mm) | 7.95mm |
| Gage-Length (Inch) | 3-3/20" |
| Gage Length (Decimal Inch) | 3.1500" |
| Gage Length (mm) | 80.01mm |
| Functional Length (Inch) | 1-29/81" |
| Functional Length (Decimal Inch) | 1.3580" |
| Functional Length (mm) | 34.49mm |
| Set Screw End Mill (Decimal Inch) | 0.6300" |
| Screw | UNF5/16-24 1/4L |
| Set of Screw | 1 |
| Taper Accuracy | N/A |
| RPM | 25000 RPM |
| Coolant System | AD+C |

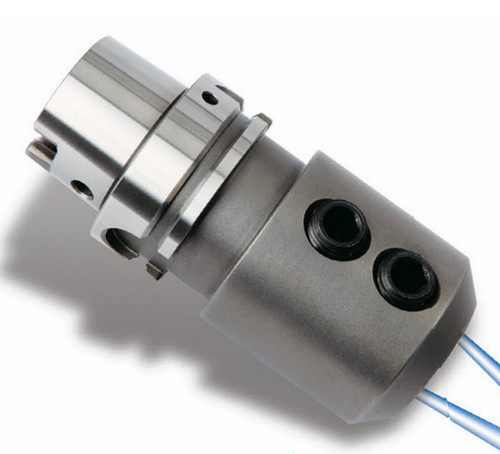

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Bore Diameter (Decimal Inch):
0.3130"
Bore Diameter (mm):
7.95mm
Gage Length (Decimal Inch):
3.1500"
Gage Length (mm):
80.01mm
Speed (RPM):
25000 RPM
interval quantity:
1
