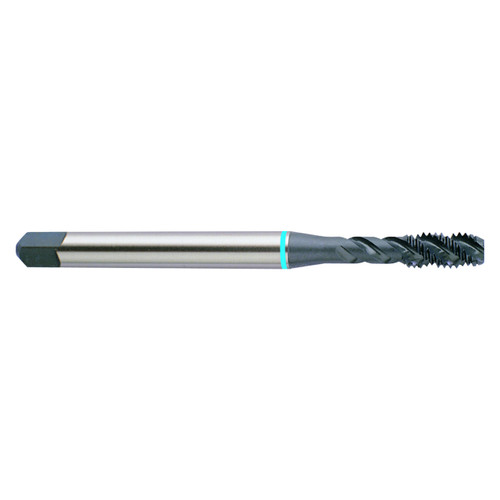

YG1 BO435 | 0.3937" Diameter x 0.3810" Shank x 3.9370" OAL 3 Flute HardSlick Coated Super HSS Spiral Flute Tap

$38.40
Brand:
YG1
Thread Size (Inch):
0.3937"
Thread Size (mm):
10.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
HardSlick
Overall Length (Inch):
3.9370"
Overall Length (mm):
100.00mm
SKU:
15007118
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)BO435
Diameter (Decimal Inch)0.3937"
Diameter (mm)10.00mm
Overall Length (Decimal Inch)3.9370"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.4720"
Thread Length (mm)12.00mm
Square Length (Decimal Inch)0.4400"
Square Length (mm)11.20mm
Shank Diameter (Decimal Inch)0.3810"
Shank Diameter (mm)9.70mm
Square Size (Decimal Inch)0.2860"
Square Size (mm)7.26mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)7.87mm
Number of Flutes3
Size & PitchM10x1.25
Tap TypeSPFL
SizeM10
Pitch1.25 TPI
Thread SeriesMF
Pitch LimitD5
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishHardslick
MaterialSuper HSS
Blank StandardDIN/ANSI
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)1.2520"
Useable Length (mm)31.80mm
Product TypeSpiral Flute Tap
