Product Specifications
| # Manufacturer Number | DL604030 |
| Diameter (Decimal Inch) | 0.4688" |
| Diameter (Inch) | 15/32" |
| Diameter (mm) | 11.91mm |
| Shank Diameter (Decimal Inch) | 0.4688" |
| Shank Diameter (Inch) | 15/32" |
| Shank Diameter (mm) | 11.91mm |
| Overall Length (Decimal Inch) | 12.0000" |
| Overall Length (Inch) | 12" |
| Overall Length (mm) | 304.80mm |
| Flute Length (Decimal Inch) | 4.3125" |
| Flute Length (Inch) | 4-5/16" |
| Flute Length (mm) | 109.54mm |
| Point Length (Decimal Inch) | 0.0971" |
| Point Length (mm) | 2.47mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

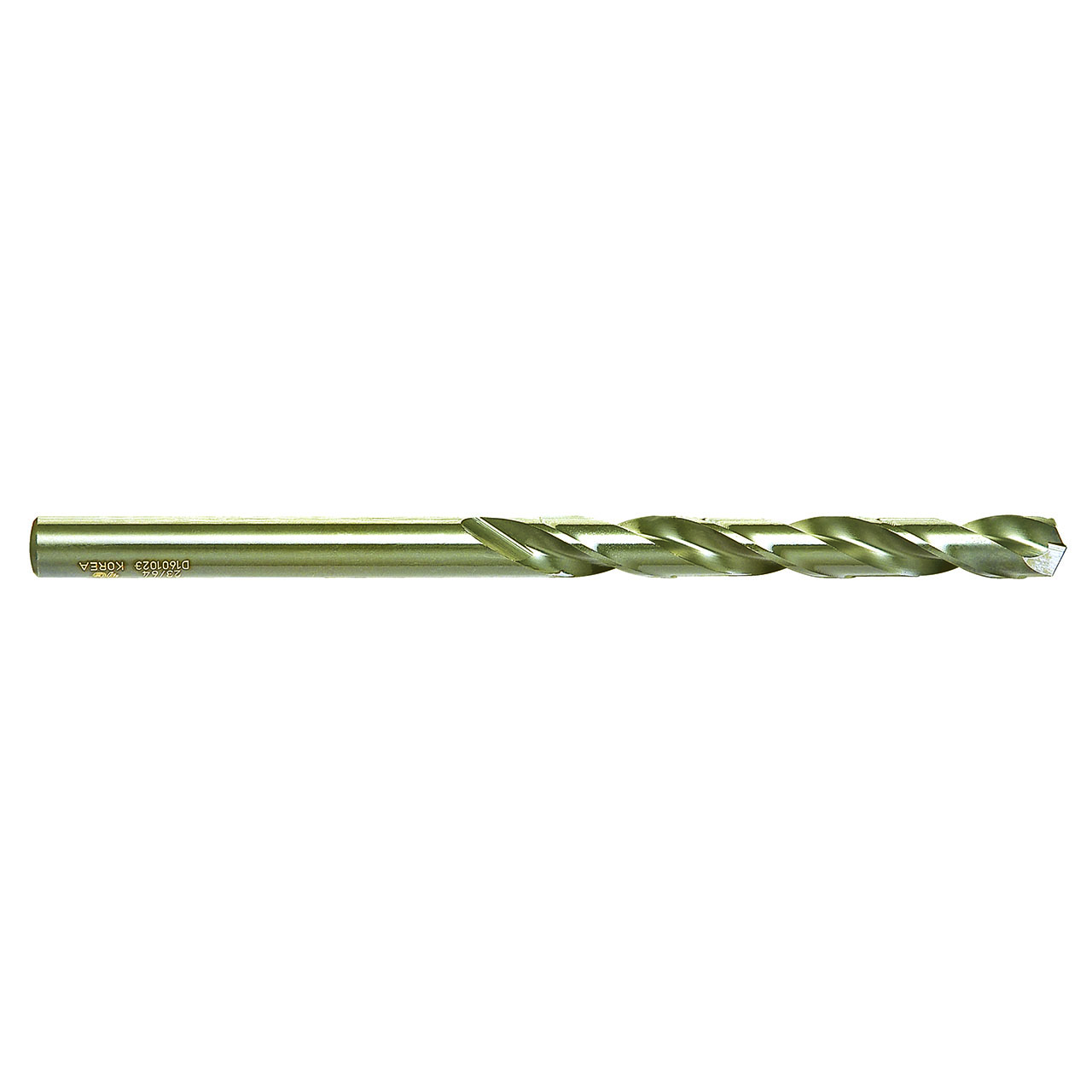

| Product Type | Aircraft Extension Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
15/32"
Drill Bit Size (Decimal Inch):
0.4688"
Drill Bit Size (mm):
11.91mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
4-5/16"
Flute Length (Decimal Inch):
4.3125"
Flute Length (mm):
109.54mm
Material:
HSS Co5
Finish/Coating:
Bright
interval quantity:
1
