Product Specifications
| # Manufacturer Number | DL605122 |
| Diameter (Decimal Inch) | 0.3770" |
| Diameter (Inch) | 23/61" |
| Diameter (mm) | 9.58mm |
| Shank Diameter (Decimal Inch) | 0.3770" |
| Shank Diameter (Inch) | 23/61" |
| Shank Diameter (mm) | 9.58mm |
| Overall Length (Decimal Inch) | 12.0000" |
| Overall Length (Inch) | 12" |
| Overall Length (mm) | 304.80mm |
| Flute Length (Decimal Inch) | 3.6250" |
| Flute Length (Inch) | 3-5/8" |
| Flute Length (mm) | 92.08mm |
| Point Length (Decimal Inch) | 0.0781" |
| Point Length (mm) | 1.98mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

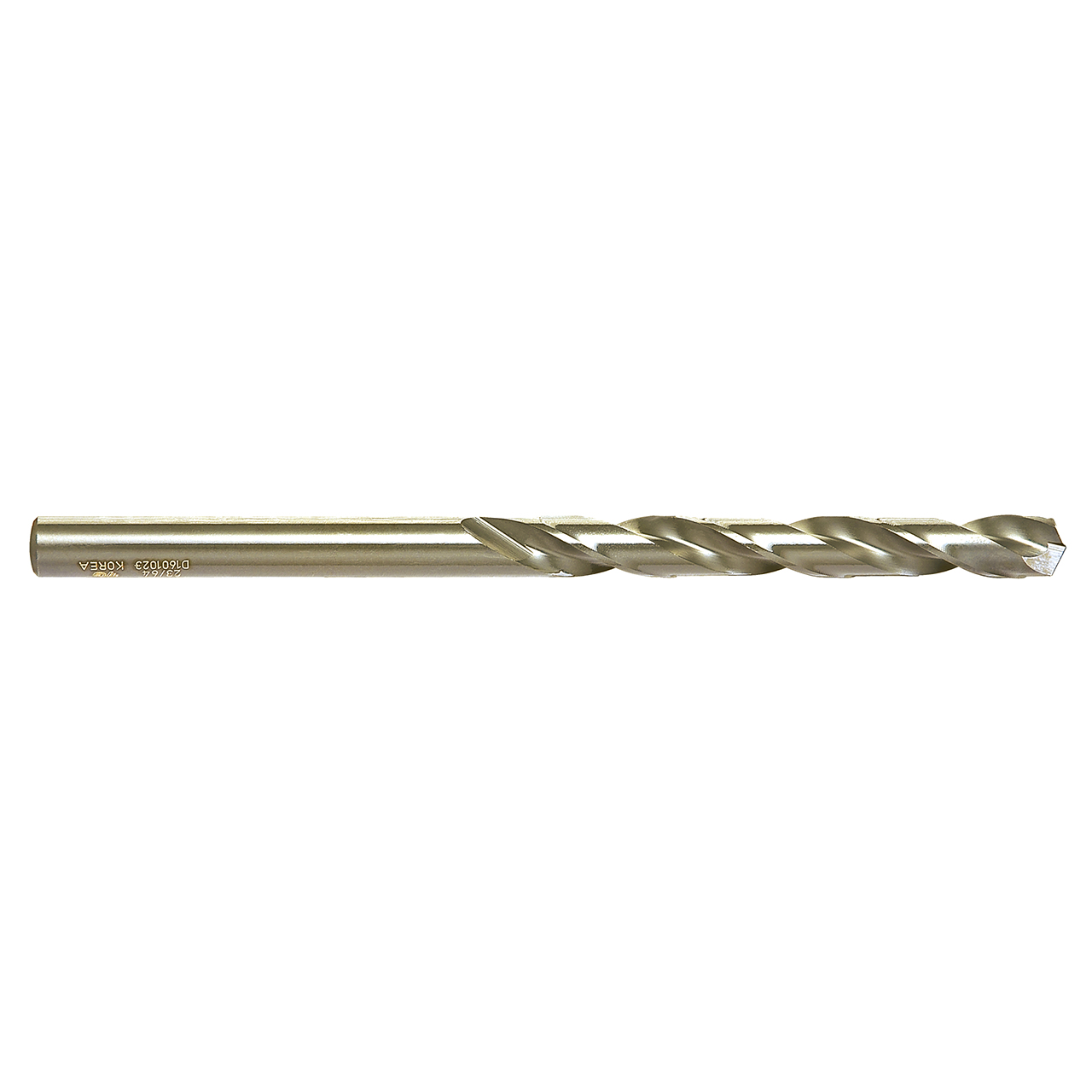

| Product Type | Aircraft Extension Drill |
| Drill Bit Size (Letter) | V |
