Product Specifications
| Manufacturer Part Number | DN514024 |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Inch) | 1-13/16" |
| Flute Length (Decimal Inch) | 1.8100" |
| Flute Length (mm) | 46.04mm |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (mm) | 79.38mm |
| Point Length (Decimal Inch) | 0.0874" |
| Point Length (mm) | 2.22mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

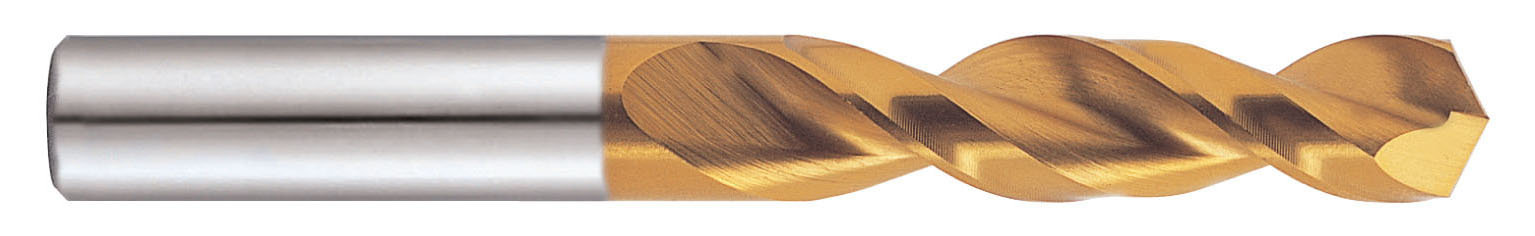

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-13/16"
Flute Length (Decimal Inch):
1.8100"
Flute Length (mm):
46.04mm
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Material:
HSS-E
Finish/Coating:
TiN
