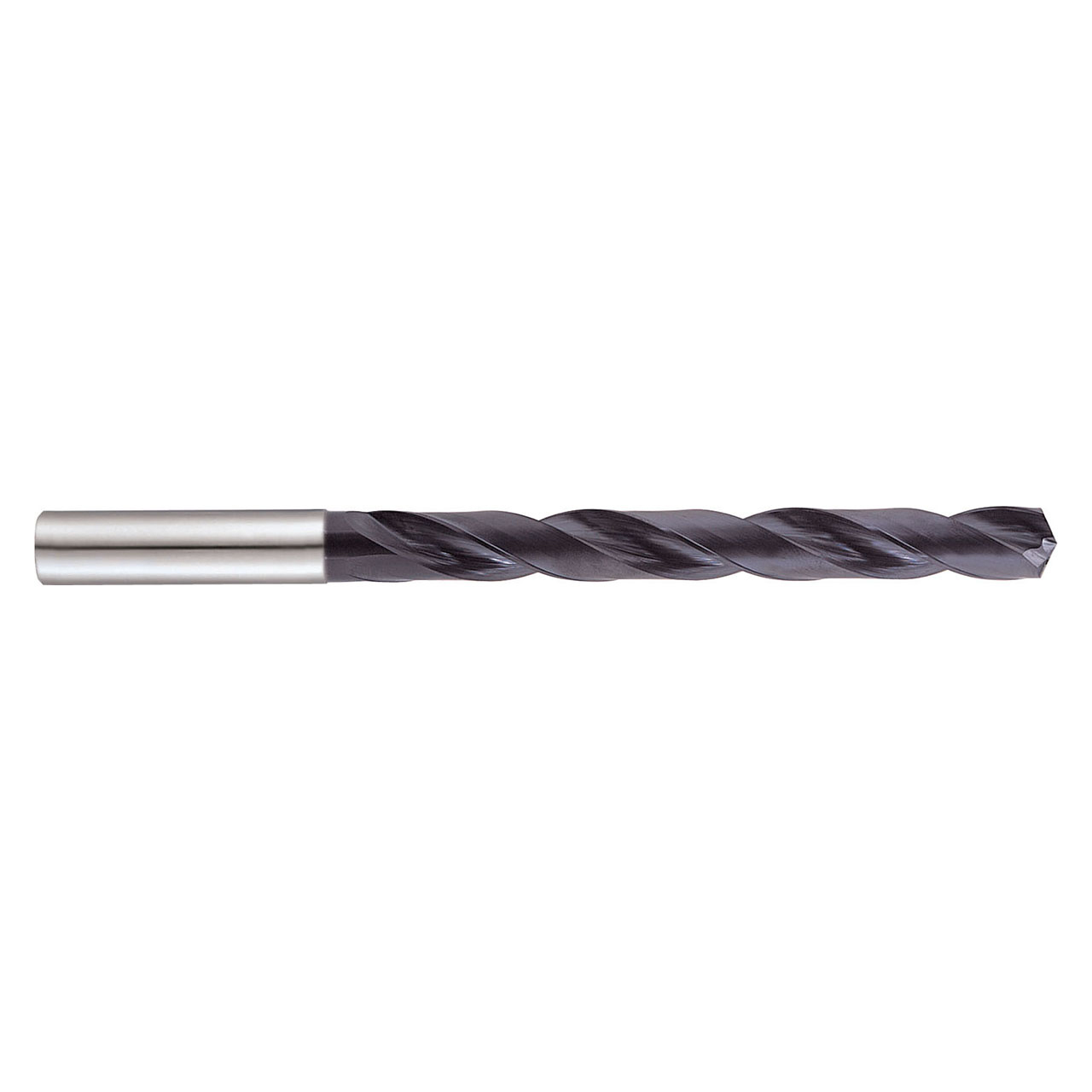

Product Specifications
| Manufacturer Part Number | DTX421045 |
| Cutting Diameter (Inch) | 14/79" |
| Cutting Diameter (Decimal Inch) | 0.177" |
| Cutting Diameter (mm) | 4.50mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-9/13" |
| Flute Length (Decimal Inch) | 1.692" |
| Flute Length (mm) | 43.00mm |
| Overall Length (Inch) | 3-7/37" |
| Overall Length (Decimal Inch) | 3.189" |
| Overall Length (mm) | 81.00mm |
| Point Length (Decimal Inch) | 0.032" |
| Point Length (mm) | 0.82mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Decimal Inch):
0.1770"
Cutting Diameter (mm):
4.50mm
Shank Diameter (Decimal Inch):
0.2360"
Shank Diameter (mm):
6.00mm
Flute Length (Decimal Inch):
1.6920"
Flute Length (mm):
43.00mm
Overall Length (Decimal Inch):
3.1890"
Overall Length (mm):
81.00mm
Point Length (Decimal Inch):
0.0320"
Point Length (mm):
0.82mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
interval quantity:
1
