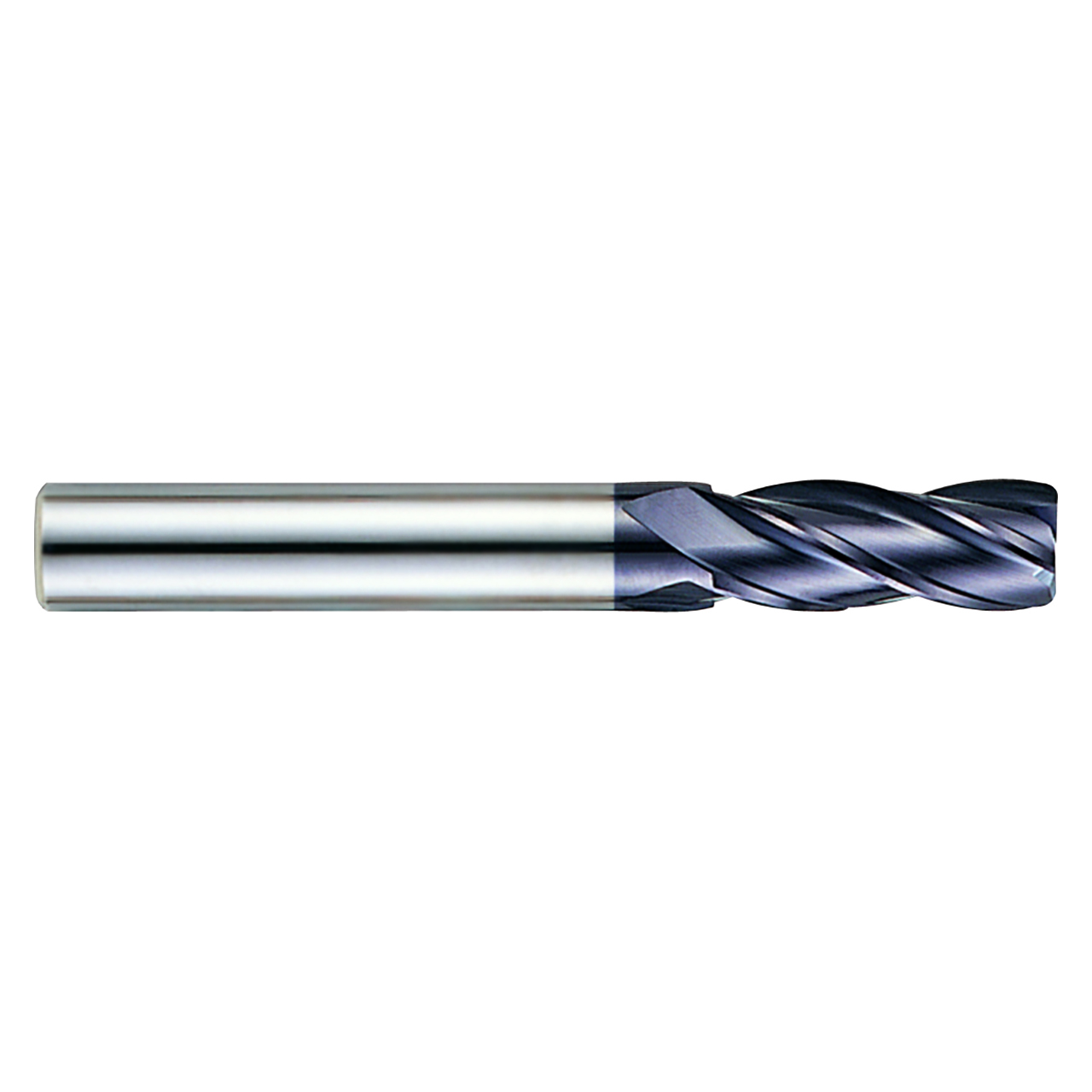

Product Specifications
| EDP Number | EM819904 |
| Diameter (Decimal Inch) | 0.3100" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.9843" |
| Length of Cut (Inch) | 62/63" |
| Length of Cut (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (mm) | 70.00mm |
| Corner Radius (Decimal Inch) | 0.0787" |
| Corner Radius (Inch) | 3/38" |
| Corner Radius (mm) | 2.00mm |
| Overall Length (Inch) | 2-65/86" |
| Number of Flutes | 4 |
| Series | EM819 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Corner Radius End Mill |
