Product Specifications

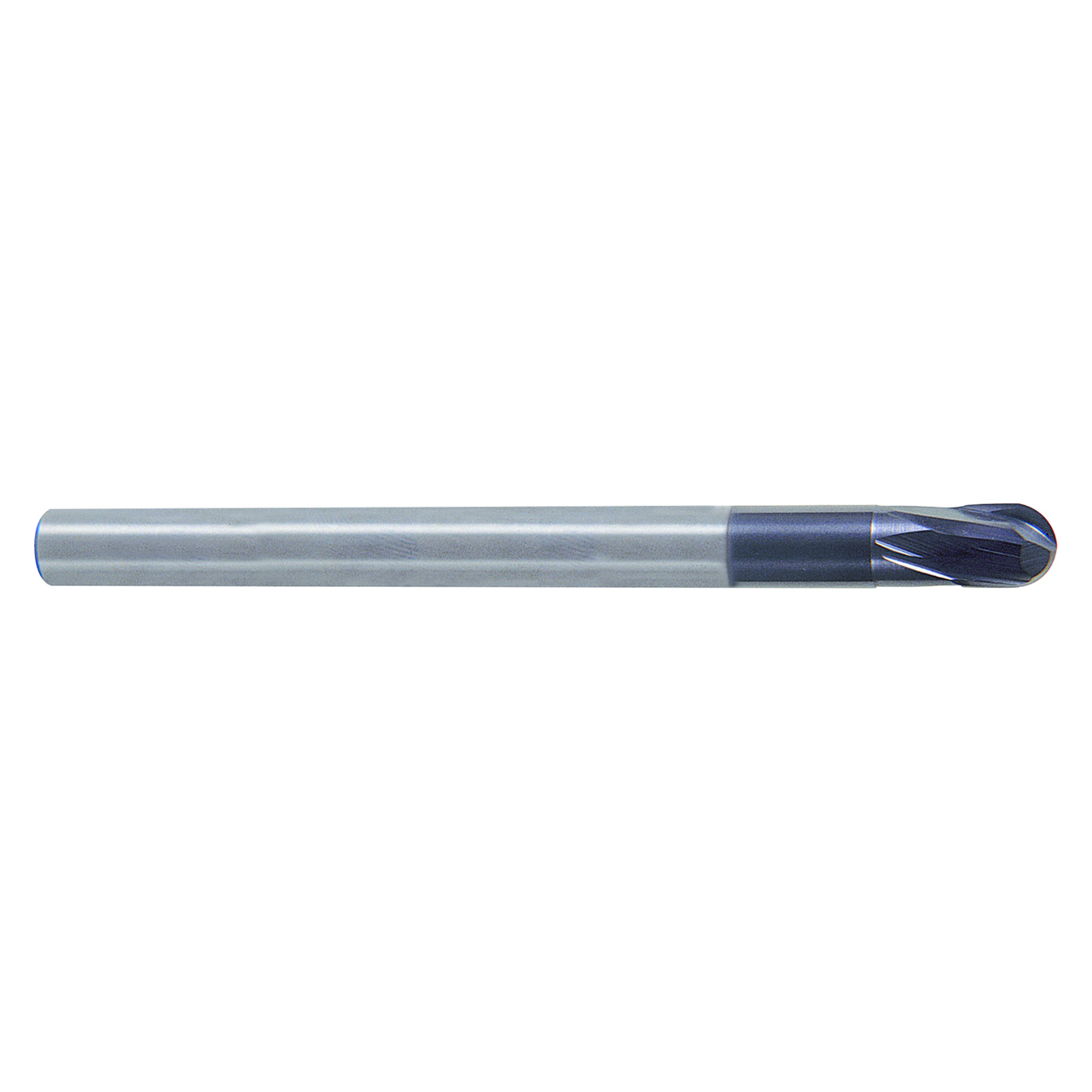

| EDP Number | EM868180 |
| Diameter (Decimal Inch) | 0.7100" |
| Diameter (Inch) | 17/24" |
| Diameter (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (mm) | 18.00mm |
| Length of Cut (Decimal Inch) | 0.7087" |
| Length of Cut (Inch) | 17/24" |
| Length of Cut (mm) | 18.00mm |
| Length Below Shank (Decimal Inch) | 1.4173" |
| Length Below Shank (Inch) | 1-5/12" |
| Length Below Shank (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 5.5118" |
| Overall Length (mm) | 140.00mm |
| Ball Nose Radius (Decimal Inch) | 0.3543" |
| Ball Nose Radius (Inch) | 28/79" |
| Overall Length (Inch) | 5-22/43" |
| Neck Diameter (Decimal Inch) | 0.7008" |
| Ball Nose Radius (mm) | 9.00mm |
| Neck Diameter (Inch) | 7/10" |
| Neck Diameter (mm) | 17.80mm |
| Number of Flutes | 2 |
| Series | EM868 |
| Helix Angle (Degree) | 15 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P,H |
| Produce Type | Ball Nose End Mill |
