Product Specifications
| Manufacturer Part Number | G9I09008N |
| Mill Diameter (Inch) | 1/8" |
| Mill Diameter (Decimal Inch) | 0.1250" |
| Mill Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Ball Nose (Decimal Inch) | 0.0625" |
| Ball Nose (Inch) | 1/16" |
| Ball Nose (mm) | 1.59mm |
| Helix | 30 Degree |
| Series | G9I09 |
| Coated | X-Coating |
| Material | Carbide |

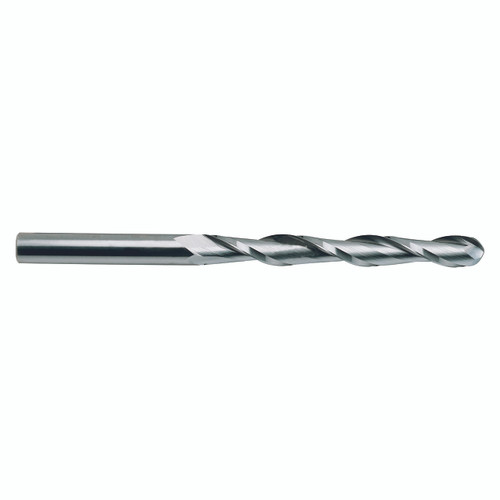

| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Coating:
X-Coated
Single or Double End:
Single End
Helix Angle:
30 Degree
interval quantity:
1
