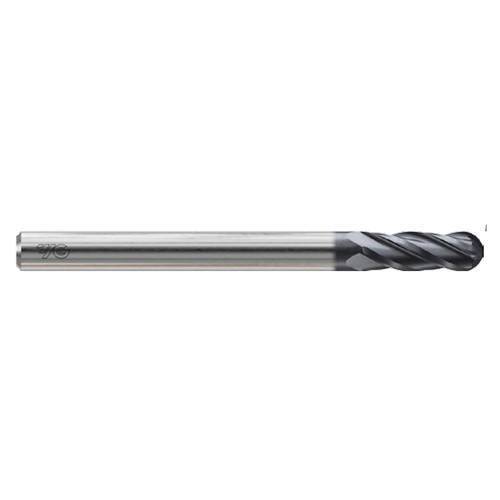

Product Specifications
| Manufacturer Part Number | G9I09040N |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Mill Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Ball Nose (Decimal Inch) | 0.3125" |
| Ball Nose (Inch) | 5/16" |
| Ball Nose (mm) | 7.94mm |
| Helix | 30 Degree |
| Series | G9I09 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
