Product Specifications
| EDP Number | GMF15940 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (mm) | 107.95mm |
| Ball Nose Radius (Decimal Inch) | 0.2500" |
| Ball Nose Radius (Inch) | 1/4" |
| Ball Nose Radius (mm) | 6.35mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | GMF15 |
| Material | Carbide |

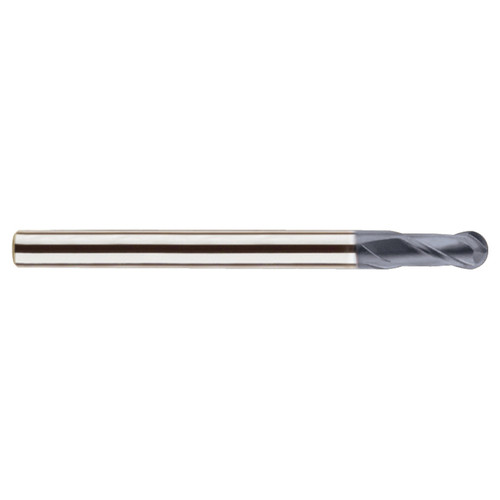

| Product Type | Ball Nose End Mill |
