Product Specifications

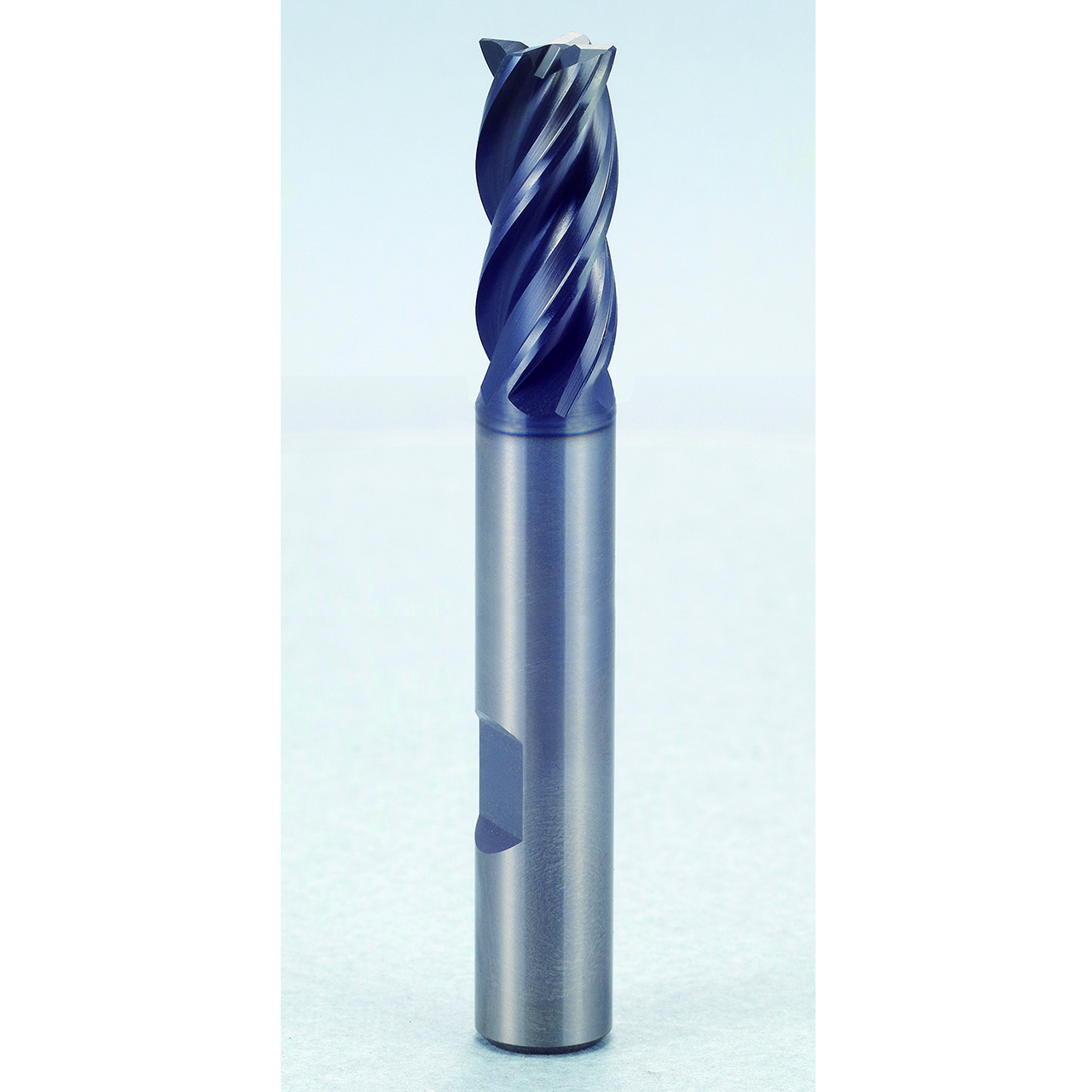

| Manufacturer Part Number | GMF57180 |
| Diameter (Inch) | 17/24" |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (mm) | 18.00mm |
| Length of Cut (Inch) | 1-20/77" |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Inch) | 3-28/45" |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (mm) | 92.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMF57 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.7087"
Diameter (Inch):
17/24"
Diameter (mm):
18.00mm
Shank Diameter (Decimal Inch):
0.7087"
Shank Diameter (Inch):
17/24"
Shank Diameter (mm):
18.00mm
Length of Cut (Decimal Inch):
1.2598"
Length of Cut (mm):
32.00mm
Overall Length (Decimal Inch):
3.6220"
Overall Length (Inch):
3-28/45"
Overall Length (mm):
92.00mm
Number of Flutes:
4
Shank Style:
Flat
Finish/Coating:
Y-Coating
Material:
Carbide
Cut Type:
Center
Cutting Direction:
Right
interval quantity:
1
