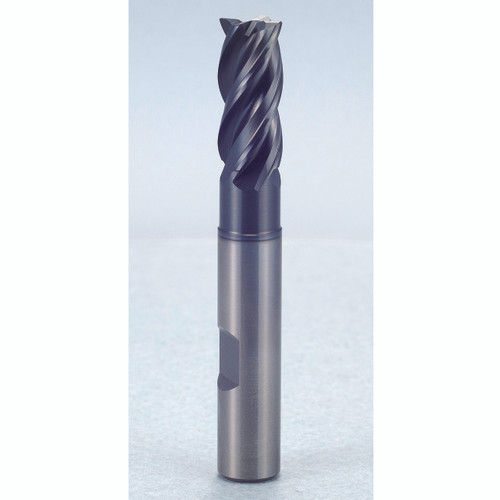

Product Specifications
Manufacturer Part Number | GMF63904 |
Diameter (Inch) | 3/19" |
Diameter (Decimal Inch) | 0.1575" |
Diameter (mm) | 4.00mm |
Shank Diameter (Inch) | 13/55" |
Shank Diameter (Decimal Inch) | 0.2362" |
Shank Diameter (mm) | 6.00mm |
Length of Cut (Inch) | 23/73" |
Length of Cut (Decimal Inch) | 0.3150" |
Length of Cut (mm) | 8.00mm |
Overall Length (Inch) | 2-21/86" |
Overall Length (Decimal Inch) | 2.2441" |
Overall Length (mm) | 57.00mm |
Corner Radius (Inch) | 1/51" |
Corner Radius (Decimal Inch) | 0.0197" |
Corner Radius (mm) | 0.50mm |
Number of Flutes | 4 |
Helix Angle | Variable |
Series | GMF63 |
Shank Style | Flat |
Coating | Y-Coated |
Material | Carbide |
Cut Type | Center |
Cutting Direction | Right |
Length Type | Extended Length |
Application | P, M, K, S |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Direction:
Right
