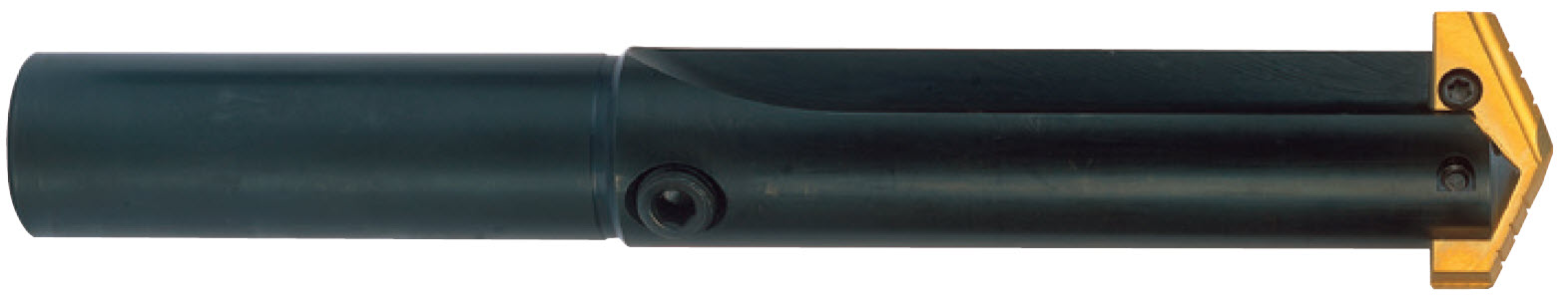

YG1 P13404 | 2-9/16" Diameter x 5-1/8" Max Drill Depth x 10-1/2" OAL 2 Flute Oxide Coated Steel Spade Drill Holder

$264.11
Brand:
YG1
Series:
P13
Minimum Drill Diameter (Decimal Inch):
1.9063";Minimum Drill Diameter (Inch)=1 29/32""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Decimal Inch):
2.5625";Maximum Drill Diameter (Inch)=2-9/16""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
10-1/2";Overall Length (Decimal Inch)=10.5000""
Overall Length (mm):
10.5000";Maximum Drill Depth (Inch)=5-1/8""
Maximum Drill Depth (Decimal Inch):
5.1300";Maximum Drill Depth (mm)=130.18mm"
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
0.7500";Shank Diameter (Inch)=3/4""
Shank Diameter (mm):
19.05mm
Material:
Steel
Finish/Coating:
Oxide
SKU:
23013194
Weight:
1.23 LBS
Shipping:
Free Shipping
YG1 P13404 | 2-9/16" Diameter x 5-1/8" Max Drill Depth x 10-1/2" OAL 2 Flute Oxide Coated Steel Spade Drill Holder

Product Specifications
# Manufacturer NumberP13404
Min. Insert Diameter (Decimal Inch)1.9063"
Min.-Insert-Diameter-(Inch)1-29/32"
Min. Insert Diameter (mm)48.42mm
Max. Insert Diameter (Decimal Inch)2.5625"
Max. Insert Diameter (Inch)2-9/16"
Max. Insert Diameter (mm)65.09mm
Shank Diameter (Decimal Inch)0.7500"
Shank Diameter (Inch)3/4"
Shank Diameter (mm)19.05mm
Max Drill Depth (Decimal Inch)5.1300"
Max Drill Depth (Inch)5-1/8"
Max Drill Depth (mm)130.18mm
Flute Length (Decimal Inch)6.5000"
Flute Length (Inch)6-1/2"
Flute Length (mm)165.10mm
Overall Length (Decimal Inch)10.5000"
Overall Length (Inch)10-1/2"
Overall Length (mm)266.70mm
Shank Length (Decimal Inch)2.3800"
Shank Length (Inch)2-3/8"
Shank Length (mm)60.33mm
Reference Length (Decimal Inch)6.6900"
Reference Length (Decimal Inch)6-11/16"
Reference Length (Decimal Inch)169.86mm
Pipe Tap (Inch)1/4"
Number of Flute2
CoatingOxide
MaterialSteel
Cutting DirectionRight
Product TypeSpade Drill Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Series:
P13
Minimum Drill Diameter (Decimal Inch):
1.9063";Minimum Drill Diameter (Inch)=1 29/32""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Decimal Inch):
2.5625";Maximum Drill Diameter (Inch)=2-9/16""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
10-1/2";Overall Length (Decimal Inch)=10.5000""
Overall Length (mm):
10.5000";Maximum Drill Depth (Inch)=5-1/8""
Maximum Drill Depth (Decimal Inch):
5.1300";Maximum Drill Depth (mm)=130.18mm"
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
0.7500";Shank Diameter (Inch)=3/4""
Shank Diameter (mm):
19.05mm
Material:
Steel
Finish/Coating:
Oxide
