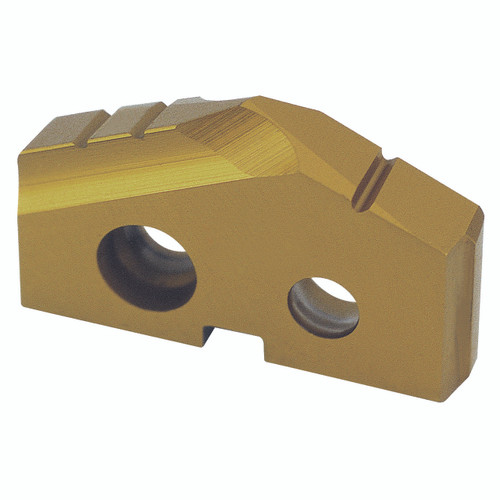

YG1 S09Y11 | 0.4300" Diameter x 0.0945" Thickness 132 Degree Included Angle Hardslick Coated S09 Series Spade Drill Insert

$38.36 $27.62
(You save $10.74)
Brand:
YG1
Series:
S09
Diameter (mm):
11.00mm
Series Code/Seat Size:
Series Y
Material:
Super Cobalt
Finish/Coating:
Hardslick
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0945"
Thickness (mm):
2.40mm
Included Angle:
132 Degree
interval quantity:
10
SKU:
23014189
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Product Specifications
EDP NumberS09Y11
Diameter (Decimal Inch)0.4300"
Diameter (Inch)13/30"
Diameter (mm)11.00mm
Thickness (Decimal Inch)0.0945"
Thickness (Inch)3/32"
Thickness (mm)2.40mm
Insert Height (Decimal Inch)0.3610"
Insert Height (Inch)13/36"
Insert Height (mm)9.17mm
SeriesS09
Point Angle (Degree)132 Degree
Holder TypeSeries Y
GradeT15
Trade NameYG Spade Drill Super Cobalt
ApplicationP,K
CoatingHardslick
MaterialSuper Cobalt
Product TypeSpade Drill Insert
