Product Specifications

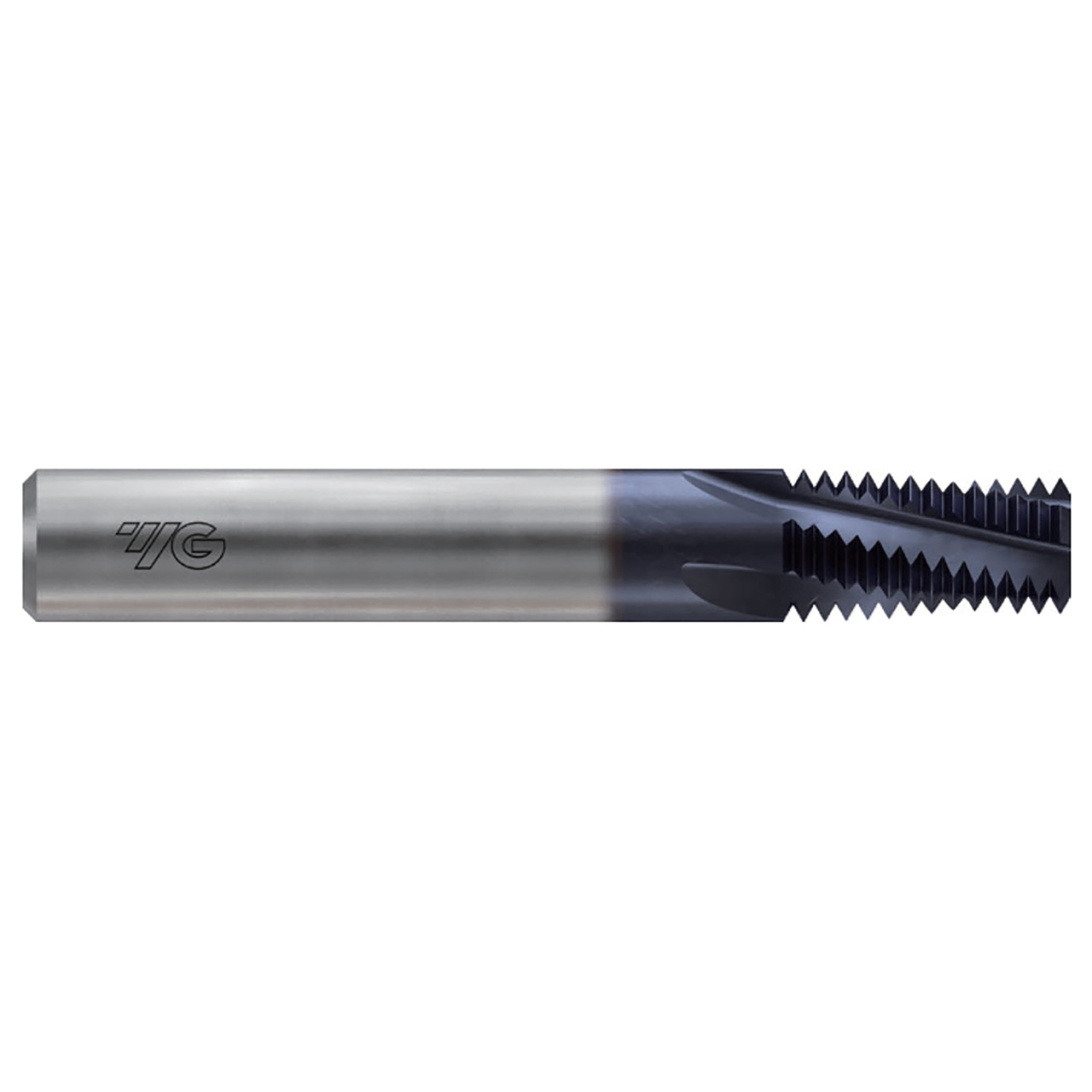

| Manufacturer Part Number | TF480 |
| Thread Diameter (Inch) | 1/4" & 3/8" |
| Threads Per Inch | 18 TPI |
| Diameter (Inch) | 4/11" |
| Diameter (Decimal Inch) | 0.3630" |
| Diameter (mm) | 9.22mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Thread Length (Inch) | 17/25" |
| Thread Length (Decimal Inch) | 0.6800" |
| Thread Length (mm) | 17.27mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 4 |
| Series | TF |
| Thread Series | NPT |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAN |
| Material | Carbide |
| Type | Unified Internal Threads - ANSI B 1.20.1 (NPT) |
| Application | P, K, N |
| Cutting Direction | Right |
