Product Specifications
| Diameter (Decimal Inch) | TTS65202 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 1.9400" |
| Overall Length (mm) | 49.28mm |
| Thread Length (Decimal Inch) | 0.2500" |
| Thread Length (mm) | 6.35" |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 0.1100" |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0900" |
| Neck Diameter (mm) | 2.29mm |
| Drill Size (Decimal Inch) | 0.1023" |
| Drill Size (mm) | 2.60mm |
| Useable (Decimal Inch) | 0.6260" |
| Useable (mm) | 15.90mm |
| Neck Length (Decimal Inch) | 0.6260" |
| Neck Length (mm) | 15.90mm |
| Neck Length (mm) | SPFL |
| Number of Flutes | 3 |
| Size | #5 |
| Pitch | 40 TPI |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

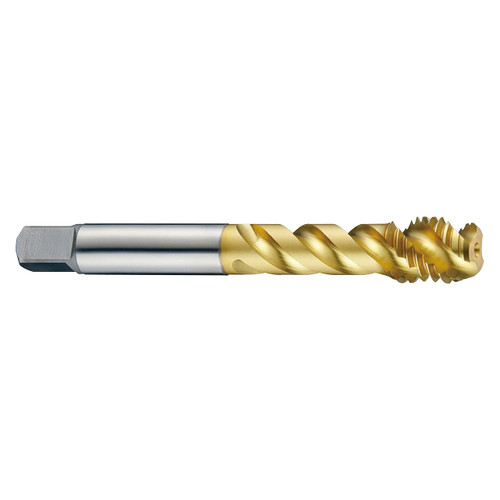

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.1250"
Thread Size (mm):
3.18mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
HSS-PM
Finish/Coating:
TIN
Through Coolant:
No
Threads per Inch (TPI):
40 TPI
Overall Length (Inch):
1.9400"
Overall Length (mm):
49.28mm
