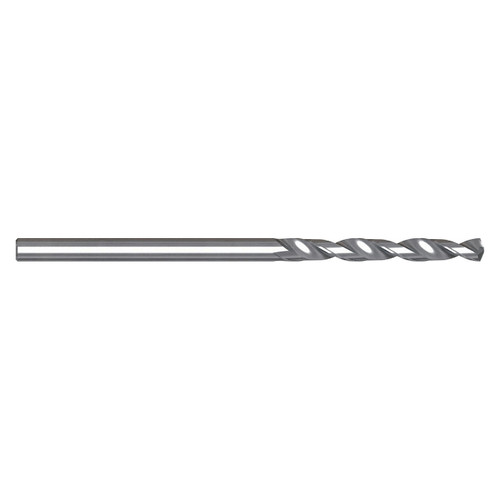

YG1 UDR5A2AB1600 | 0.6299" Diameter x 0.6299" Shank x 5.2362" OAL 2 Flute Micron Grain Carbide Jobber Length Drill Bit

$98.36 $70.82
(You save $27.54)
Brand:
YG1
Drill Bit Size (Inch):
17/27"
Drill Bit Size (Decimal Inch):
0.6299"
Drill Bit Size (mm):
16.00mm
Drill Point Angle:
125 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
interval quantity:
1
SKU:
10216693
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.

Features:


Product Specifications
Manufacturer Part NumberUDR5A2AB1600
Drill Diameter (Inch)17/27"
Drill Diameter (Decimal Inch)0.6299"
Drill Diameter (mm)16.00mm
Shank Diameter (Inch)17/27"
Shank Diameter (Decimal Inch)0.6299"
Shank Diameter (mm)16.00mm
Flute Length (Inch)3-19/71"
Flute Length (Decimal Inch)3.2677"
Flute Length (mm)83.00mm
Overall Length (Inch)5-13/55"
Overall Length (Decimal Inch)5.2362"
Overall Length (mm)133.00mm
Number of Flutes2
SeriesUDR5A2AB
Point Angle125 Degree
Shank TypePlain
ApplicationCFRP/AL/CFRP
MachineCNC Ganty, Robot End-Effectors
OperationDrilling
