Product Specifications

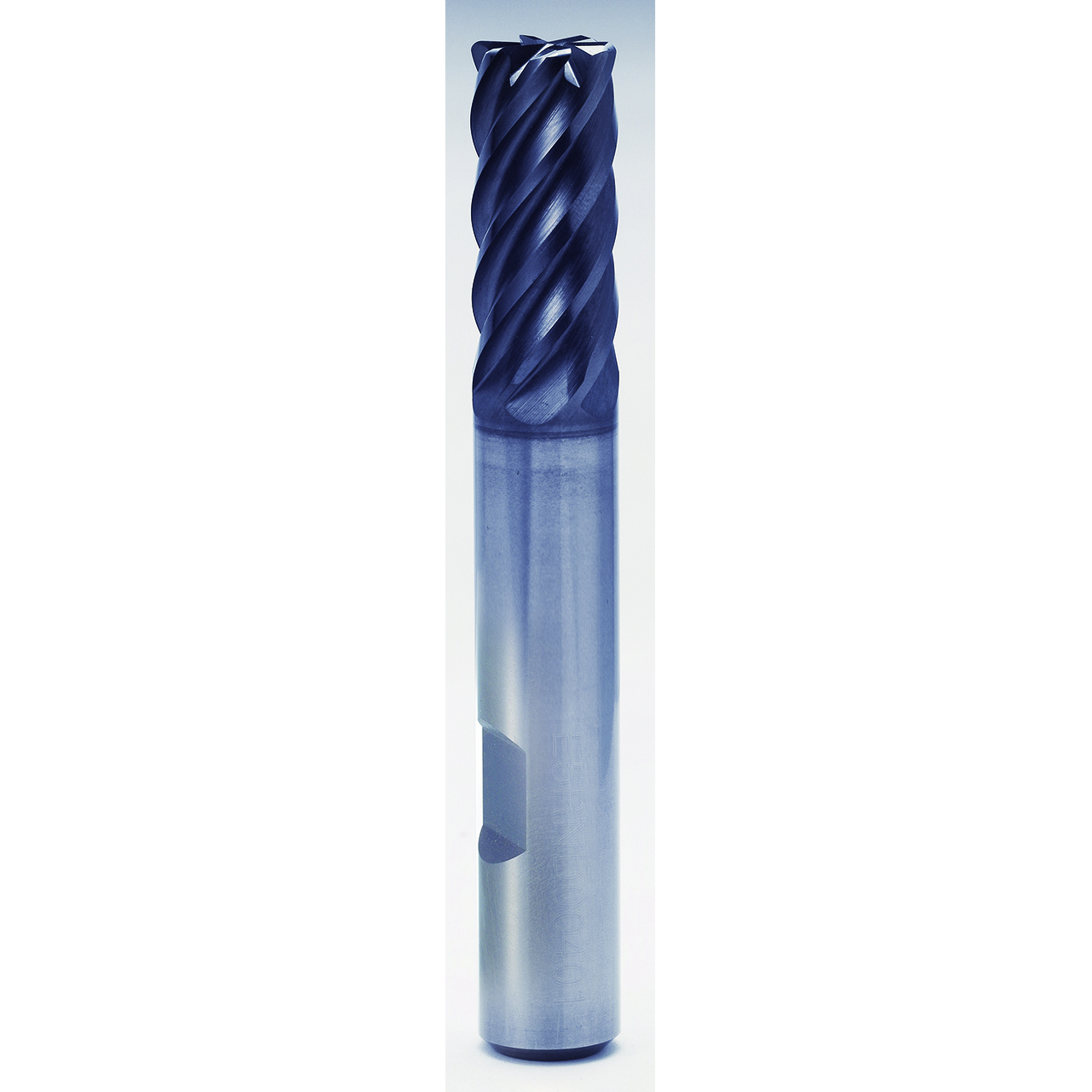

| Manufacturer Part Number | UGMG23032 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Inch) | 1/67" |
| Corner Radius (Decimal Inch) | 0.0150" |
| Corner Radius (mm) | 0.38mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | UGMG23 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Direction:
Right
interval quantity:
1
