Kurt DX6 | 6" NEW Machine Vise $539.95 Sale - FREE SHIPPING

$587.00 $539.95
(You save $47.05)
SKU:
50000037
Weight:
78.00 LBS
Shipping:
Free Shipping
Kurt DX6 | 6" NEW Machine Vise $539.95 Sale - FREE SHIPPING

INTRODUCING THE KURT DX6™ CrossOver™ Vise

The evolutionary DX6™ CrossOver™ Vise combines all the great features of the world-renowned KURT D688 and 3600V vises, along with new state-of-the-art workholding features. DX6™ CrossOver™ achieves new levels in precision and performance where flatness and parallelism are important and is a better vise than our own D688 in every way we measure a vise. With KURT’S MADE IN AMERICA commitment, the DX6™ CrossOver™ is destined to become the go-to-vise or today’s machining applications.





See how it compares to our popular Kurt D688 Vise:





Kurt DX6™ CrossOver™ Features:

  1. The Kurt DX6™ CrossOver™ vise is a combination of AngLock®, Pull-Type and 4 bolt stationary jaw design. When combined they create an ultra unique strategy or a better vise:
    –AngLock® design reduces stress on body during clamping
    –Pull-type design reduces stress on body during clamping
    –4 bolt design reduces stationary jaw deflection and alleviates body stress
  2. Hardened vise bed/jaw plates
  3. Handle included.
  4. Semi-hard steel screw
  5. 80,000 psi ductile iron body, nut and movable jaw
  6. Large 9" opening
  7. New wider 4 bolt stationary design -fastens rom the top
  8. Bolts & locates on 40mm, 50mm and 2" grid patterns
  9. Accepts sine keys or alignment (not included)
  10. Weight 65lbs.
  11. Chip evacuation straight through the body
  12. Screw support held in place with snap rings
  13. GrooveLock® jaw plate and workstop included
  14. New brush seal design makes it easier to replace
  15. Includes chip guard
  16. Powder coat paint is long lasting and durable
  17. Matching of the bed heights or keyway to stationary jaw (additional cost)
  18. Fits on D50-4-SA swivel base
  19. Lifetime Iron Clad Warranty DX6™ CrossOver™ features comparison to D688 Vise:
  20. DX6 is a replacement vise to D688 vise
  21. Larger opening (9.0" versus 8.8")
  22. Same bed height as D688
  23. Narrower body style than D688 and allows more vises on machine table
  24. Larger, stronger, and more durable bearing pack lasts longer
  25. Same distance from the keyway to stationary as D688
  26. DX6 weight 65lbs. vs D688 69lbs.
  27. DX6™ CrossOver™ Vise Models available:
    -DX6 Manual
    -DX6H Hydraulic
    -DX6R Manual Reverse
    -DX6HR Hydraulic Reverse

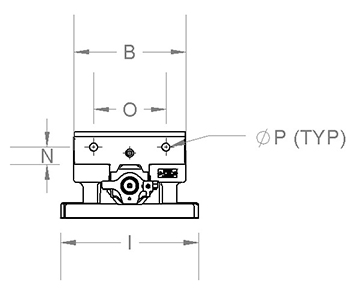

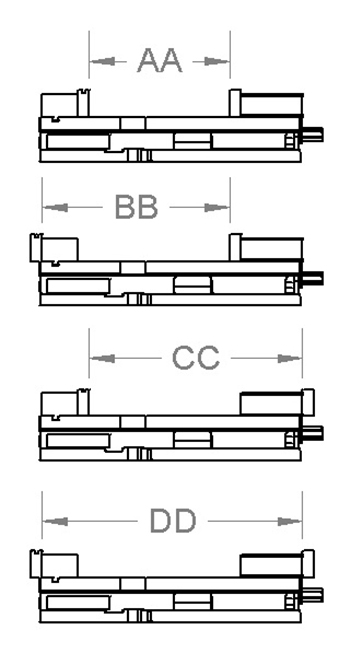

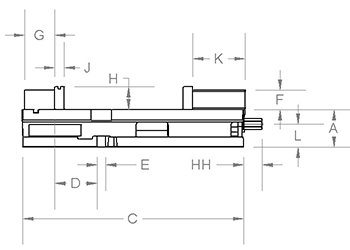

Kurt DX6 Vise Dimensions

Data
Data
Data
Data
  Inch Pounds
A 2.875 x
B 6.000 x
C 16.810 x
D 2.837 x
E 0.656 x
F 1.485 x
G 2.312 x
H 1.735 x
I 7.391 x
J 0.725 x
K 4.000 x
L 2.295 x
M 0.328 x
N 0.940 x
O 3.875 x
P 1/2-13 x
P metric M12 x
Q 2.00 x
R 2.986 x
S 80mm x
T 200mm x
U 100mm x
V 10.000 x
W 4.000 x
X 16mm x
Y 0.625 x
Z 0.992 x
AA 9.080 x
BB 12.117 x
CC 13.8050 x
DD 16.842 x
EE 2.4801 x
FF 3.375 x
GG 3/4 x
HH 1.448 x
MM 25mm x
Ship Wt. x 78

Brand:
Kurt
