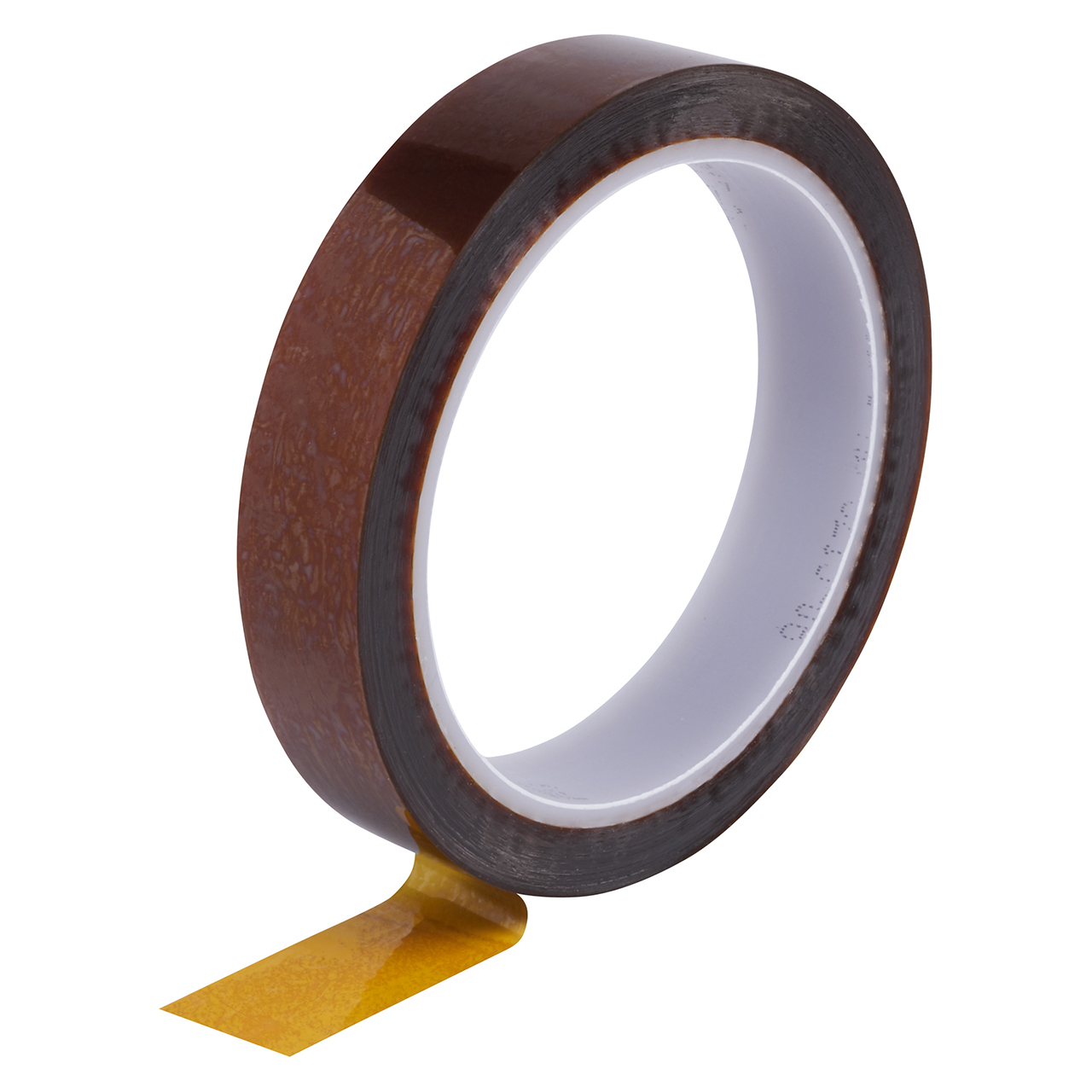

3M 7100035643 | 56 66MX50MMMC4 15.500" Width x 3.2 mil Thickness Polyimide Film Electrical Tape

$52.70
Ships:
From Manufacturer
Brand:
3M
Width (Inch):
15-1/2"
Width (Decimal Inch):
15.5000"
Width (mm):
393.70mm
Color:
Amber
interval quantity:
12
Ships:
From Manufacturer
SKU:
96004838
Weight:
2.11 LBS
Minimum Purchase:
12 units
Shipping:
Free Shipping

3M polyimide film electrical tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of 40 to 311 °F ( 40 to 155 °C) without the loss of electrical properties and tensile strength.

3M electrical tape 1205 has a pressure sensitive, acrylic adhesive that offers optimized adherence. This tape is designed for anchoring leads/terminal boards. It is ideal for use as wave solder masking tape in a printed circuit board assembly. This flame retardant tape is highly resistant to heat and solvents. UL Listed and RoHS 2011/65/EU Compliant.

Features
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Flame-retardant and has polyimide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of -40 to 311 °F (-40 to 155 °C)
  • UL listed and RoHS compliant
