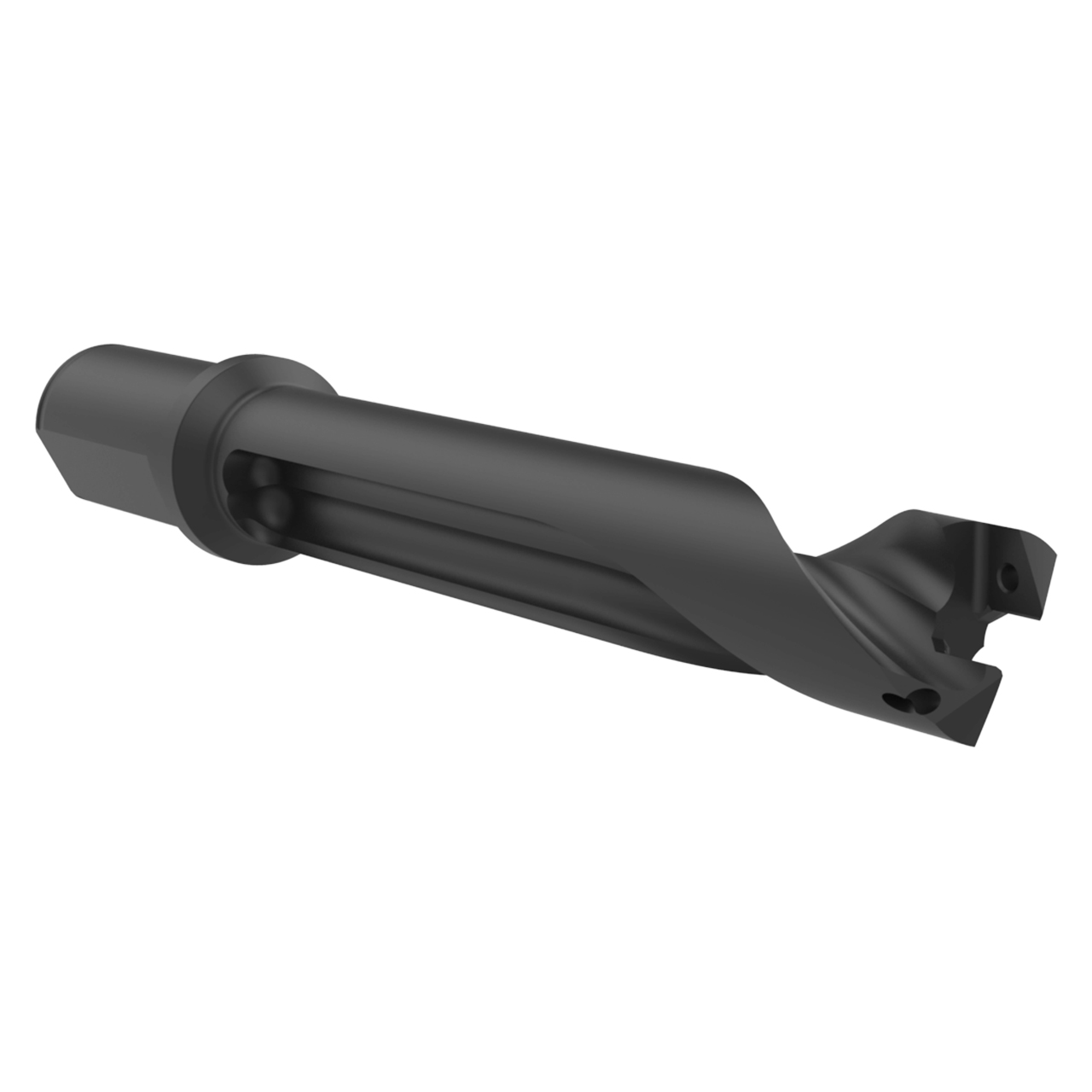

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60529S-125F |
| Body Length (Inch) | 7-29/32" |
| Drill Depth (Inch) | 6-19/64" |
| Maximum Diameter (Decimal Inch) | 1.2597" |
| Maximum Diameter (mm) | 31.99mm |
| Minimum Diameter (Decimal Inch) | 1.1417" |
| Minimum Diameter (mm) | 29mm |
| Overall Length (Inch) | 10-3/16" |
| Pipe Tap Rear (Inch) | 1/4 (NPT) |
| Series | 29 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Tool Reference Length (Inch) | 8-1/64" |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
