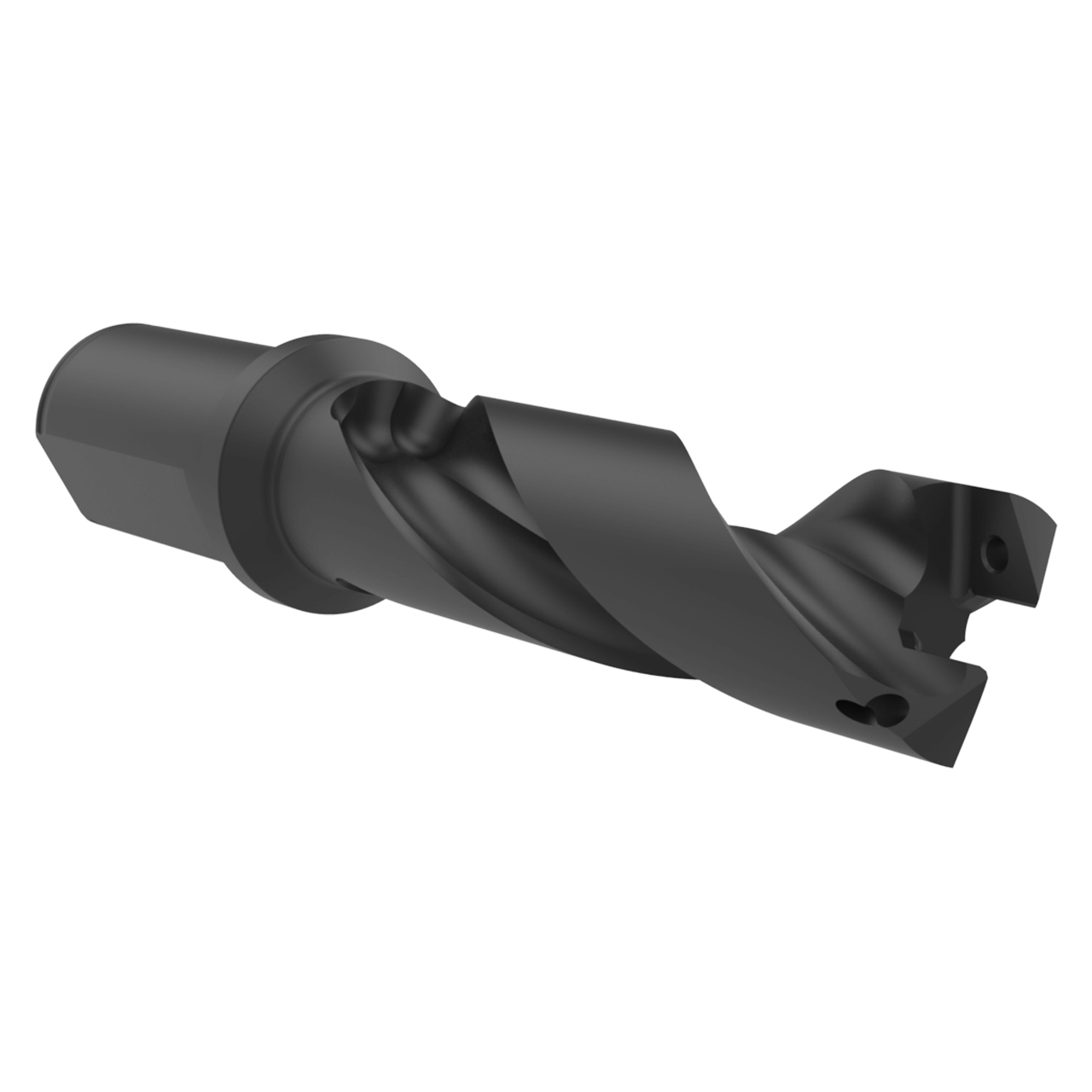

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
| # MFG | 60329H-125F |
| Body Length (Inch) | 5-3/8" |
| Drill Depth (Inch) | 3-25/32" |
| Maximum Diameter (Decimal Inch) | 1.2597" |
| Maximum Diameter (mm) | 31.99mm |
| Minimum Diameter (Decimal Inch) | 1.1417" |
| Minimum Diameter (mm) | 29mm |
| Overall Length (Inch) | 7-43/64" |
| Pipe Tap Rear (Inch) | 1/4 (NPT) |
| Series | 29 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Tool Reference Length (Inch) | 5-1/2" |
| Length Type | 3xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Helical |
| Shank Type | Flanged |
