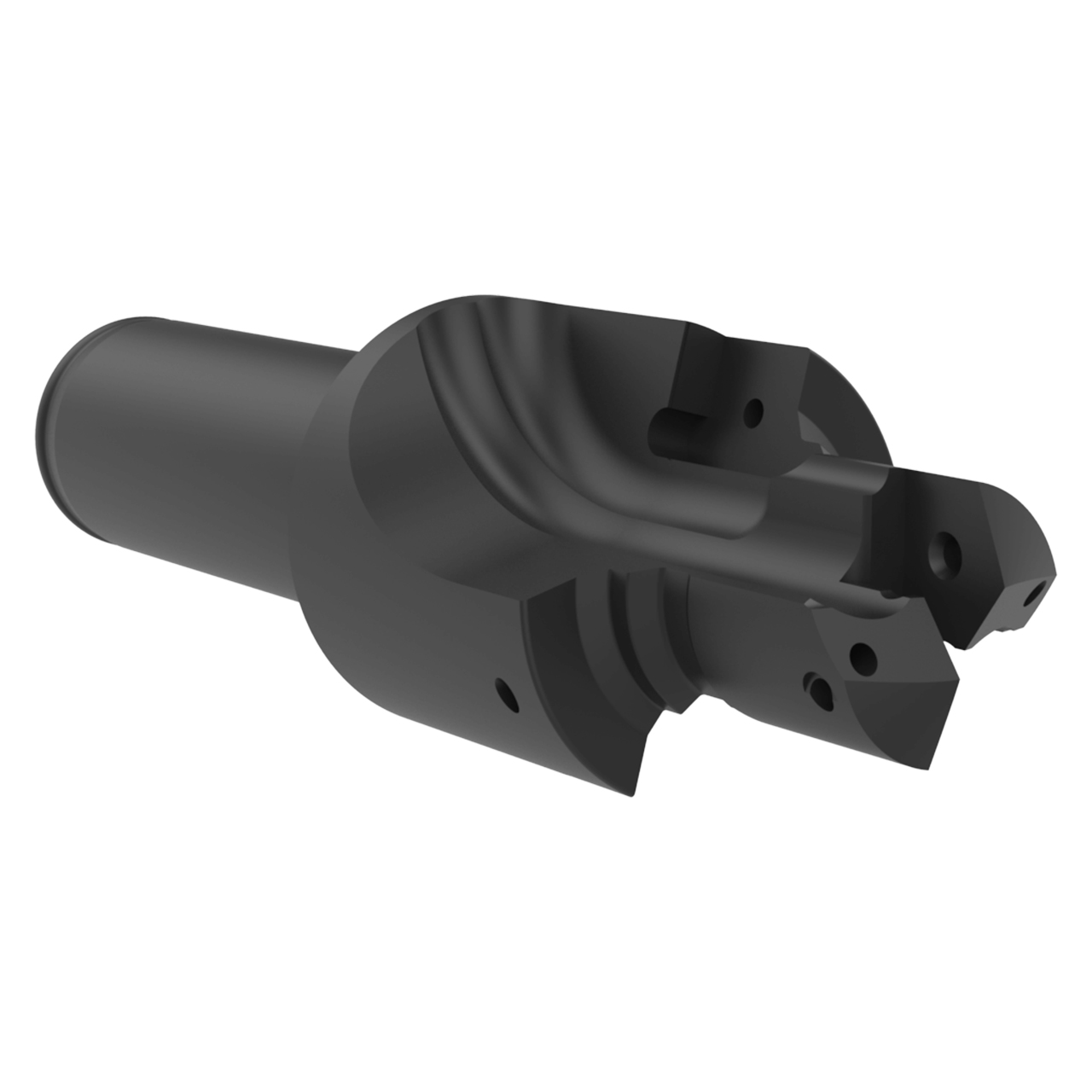

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | AS5202-080-075F |
| Pilot Diameter (Inch) | 0.689" |
| Pilot Diameter (mm) | 17.5mm |
| Spotface Diameter (Inch) | 1.198" |
| Spotface Diameter (mm) | 30.43mm |
| Shank Diameter (Inch) | 0.75" |
| Shank Diameter (mm) | 19.05mm |
| Seal Angle Diameter (Inch) | 0.875" |
| Seal Angle Diameter (mm) | 22.23mm |
| Overall Length (Inch) | 4.08" |
| Overall Length (mm) | 103.53mm |
| Pilot Length (Inch) | 1.969" |
| Pilot Length (mm) | 50.01mm |
| Shank Length (Inch) | 1.125" |
| Shank Length (mm) | 28.57mm |
| Seal Angle | 60 Degree |
| Spotface to Shoulder Length (mm) | 28.57mm |
| Seal Angle | 60 Degree |
| Series | 0.5 |
| Tube Size | -8 |
| Port Standard | SAE AS5202 |
| Port Thread Size | 3/4-16 UNJF-3B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/8" |
