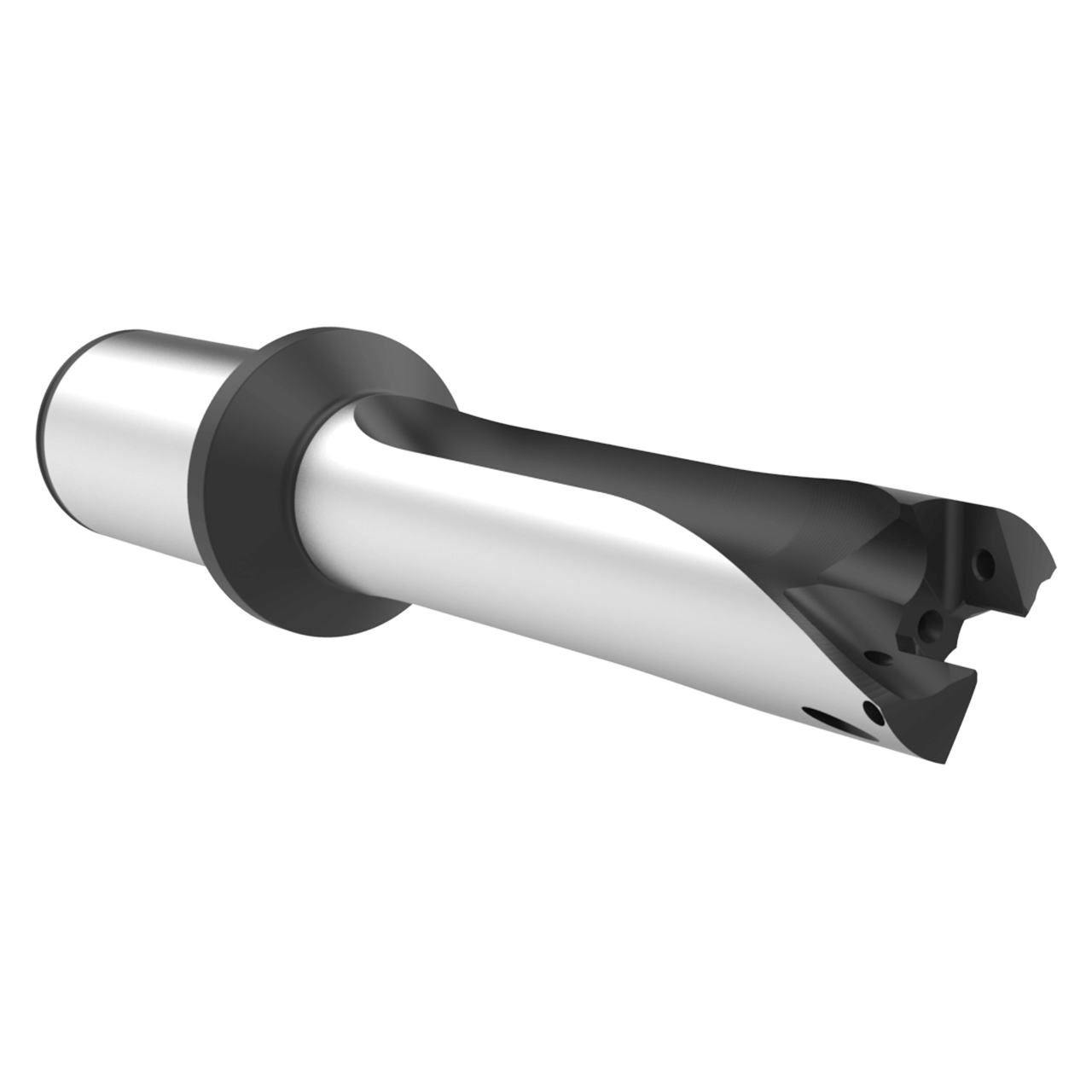

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0332S-32CM |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (mm) | 105mm |
| Flat | No |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 1.378" |
| Maximum Diameter (mm) | 35mm |
| Minimum Diameter (Inch) | 1.2598" |
| Minimum Diameter (mm) | 32mm |
| Overall Length (mm) | 231.3mm |
| Series | 32 |
| Shank Diameter (mm) | 32mm |
| Shank Length (mm) | 60mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 161.3mm |
