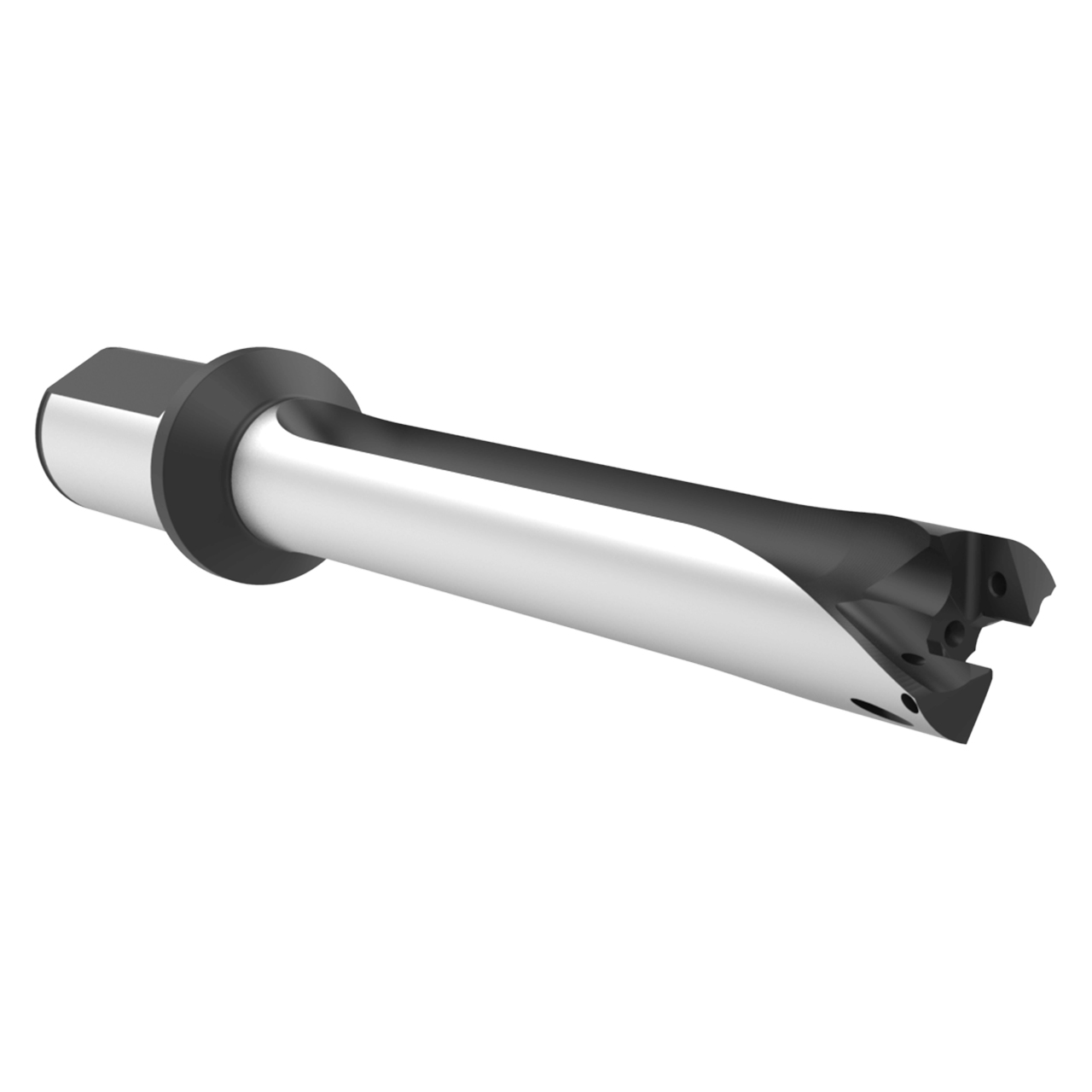

Allied Machine and Engineering HXT0532S-32FM | 32.00mm Diameter x 32.00mm Shank 5xD Flanged 32 Series Indexable Spade Drill

SKU: 23035770 Weight: 3.59 LBS Minimum Purchase: 1 unit
UPC:
$582.00 $547.08
(You save $34.92)
Shipping: Free Shipping

About This Item

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

  • The XT Pro holder features an increased flute area for chip evacuation
  • The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications
# MFGHXT0532S-32FM
Coolant Inlet Style RearTSC
Deep HoleNo
Drill Depth (mm)175mm
FlatYes
Length Type5xD
Maximum Diameter (Inch)1.378"
Maximum Diameter (mm)35mm
Minimum Diameter (Inch)1.2598"
Minimum Diameter (mm)32mm
Overall Length (mm)301.3mm
Series32
Shank Diameter (mm)32mm
Shank Length (mm)60mm
Shank typeFlanged
Tool Reference Length (mm)231.3mm
