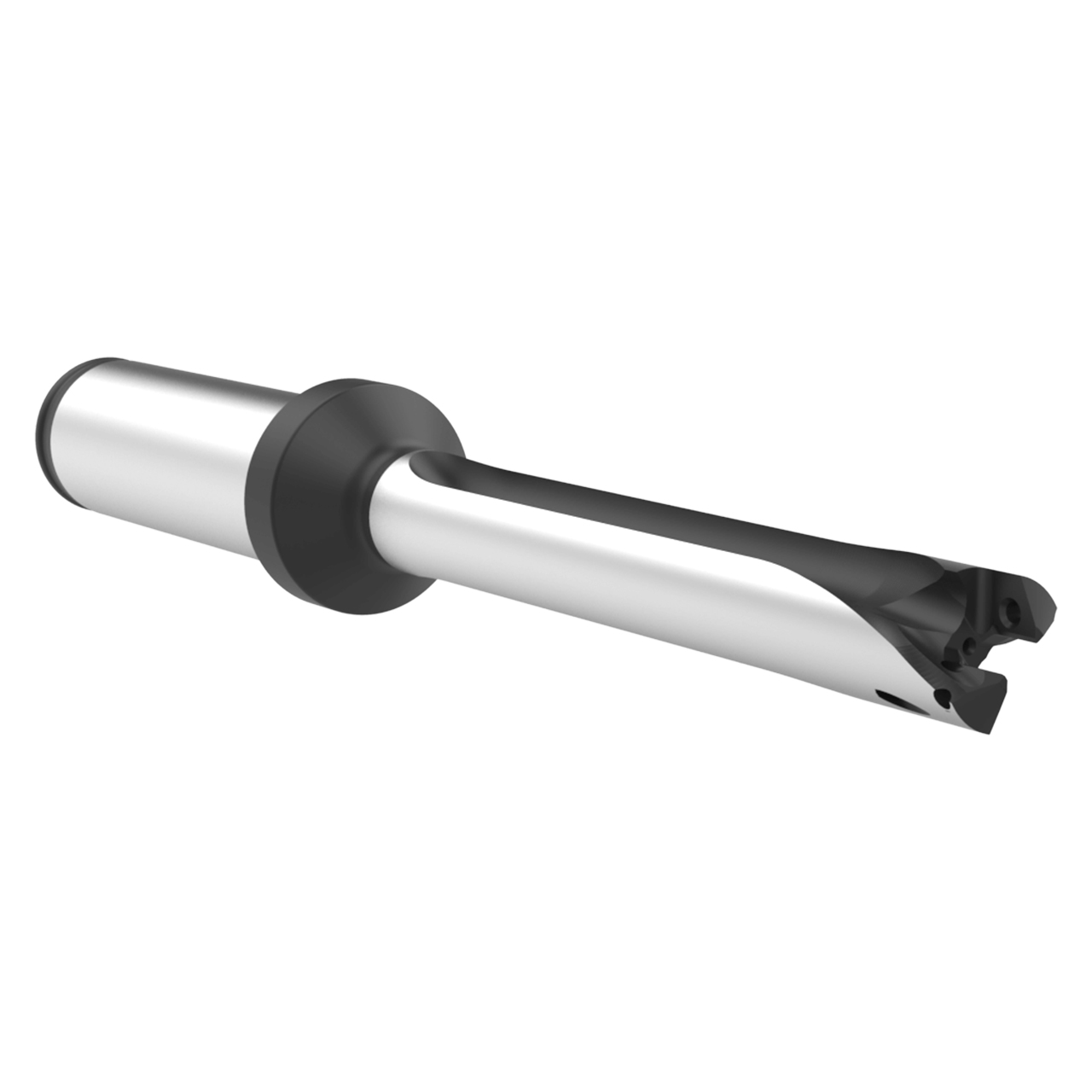

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0511S-16CM |
| Body Length (Inch) | 3.41" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (mm) | 59.9mm |
| Flat | No |
| Length Type | 5xD |
| Maximum Diameter (Inch) | 0.4723" |
| Maximum Diameter (mm) | 11.99mm |
| Minimum Diameter (Inch) | 0.4331" |
| Minimum Diameter (mm) | 11mm |
| Overall Length (mm) | 136.4mm |
| Series | 11 |
| Shank Diameter (mm) | 16mm |
| Shank Length (mm) | 48mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 88.4mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
