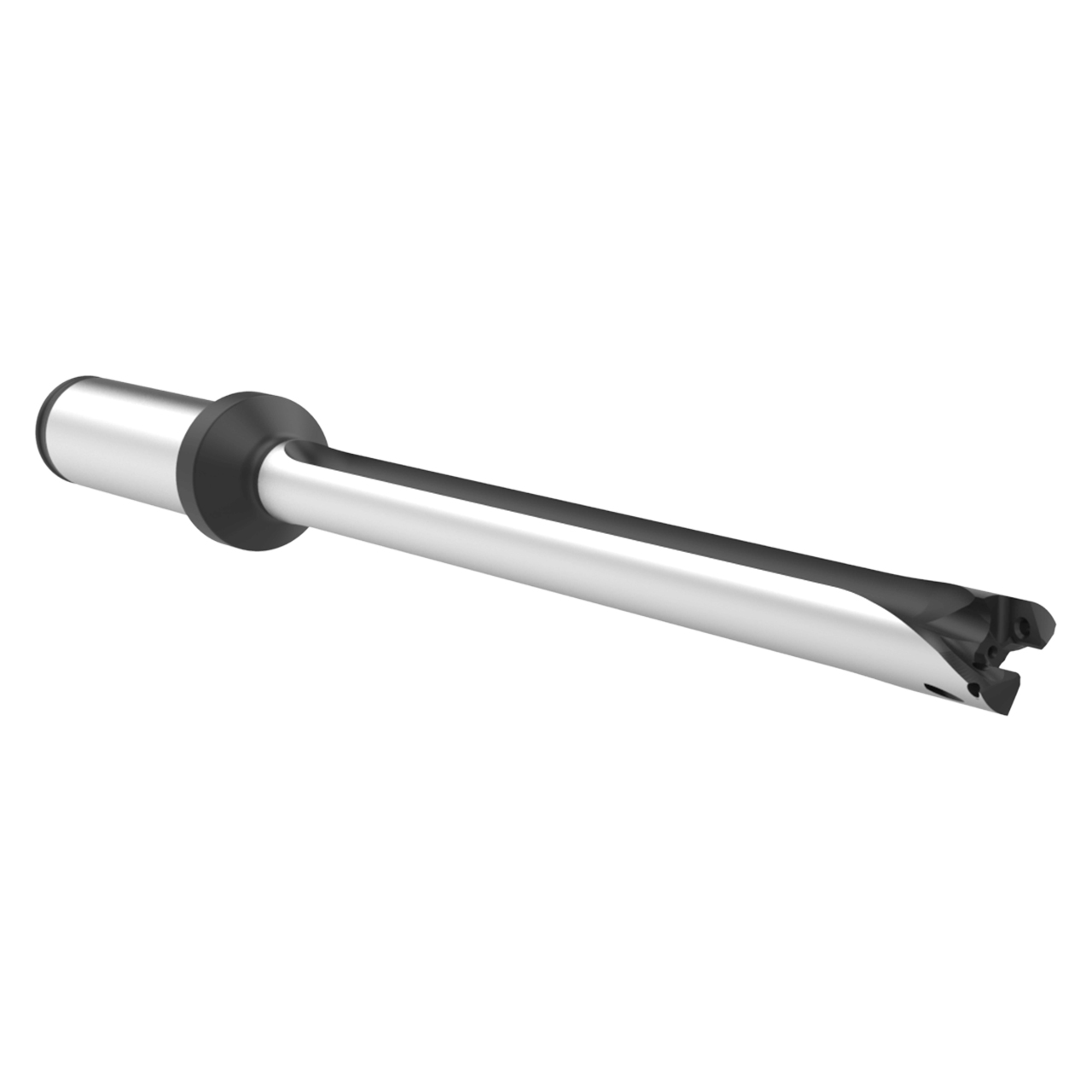

Allied Machine and Engineering HXT1011S-16CM | 11.00mm Diameter x 16.00mm Shank 10xD Flanged 11 Series Indexable Spade Drill

SKU: 23035711 Weight: 0.35 LBS Minimum Purchase: 1 unit
UPC:
$463.50 $435.69
(You save $27.81)
Shipping: Free Shipping

About This Item

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

  • The XT Pro holder features an increased flute area for chip evacuation
  • The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications
# MFGHXT1011S-16CM
Body Length (Inch)5.77"
Coolant Inlet Style RearTSC
Deep HoleYes
Drill Depth (mm)119.9mm
FlatNo
Length Type10xD
Maximum Diameter (Inch)0.4723"
Maximum Diameter (mm)11.99mm
Minimum Diameter (Inch)0.4331"
Minimum Diameter (mm)11mm
Overall Length (mm)196.4mm
Series11
Shank Diameter (mm)16mm
Shank Length (mm)48mm
Shank typeFlanged
Tool Reference Length (mm)148.4mm
