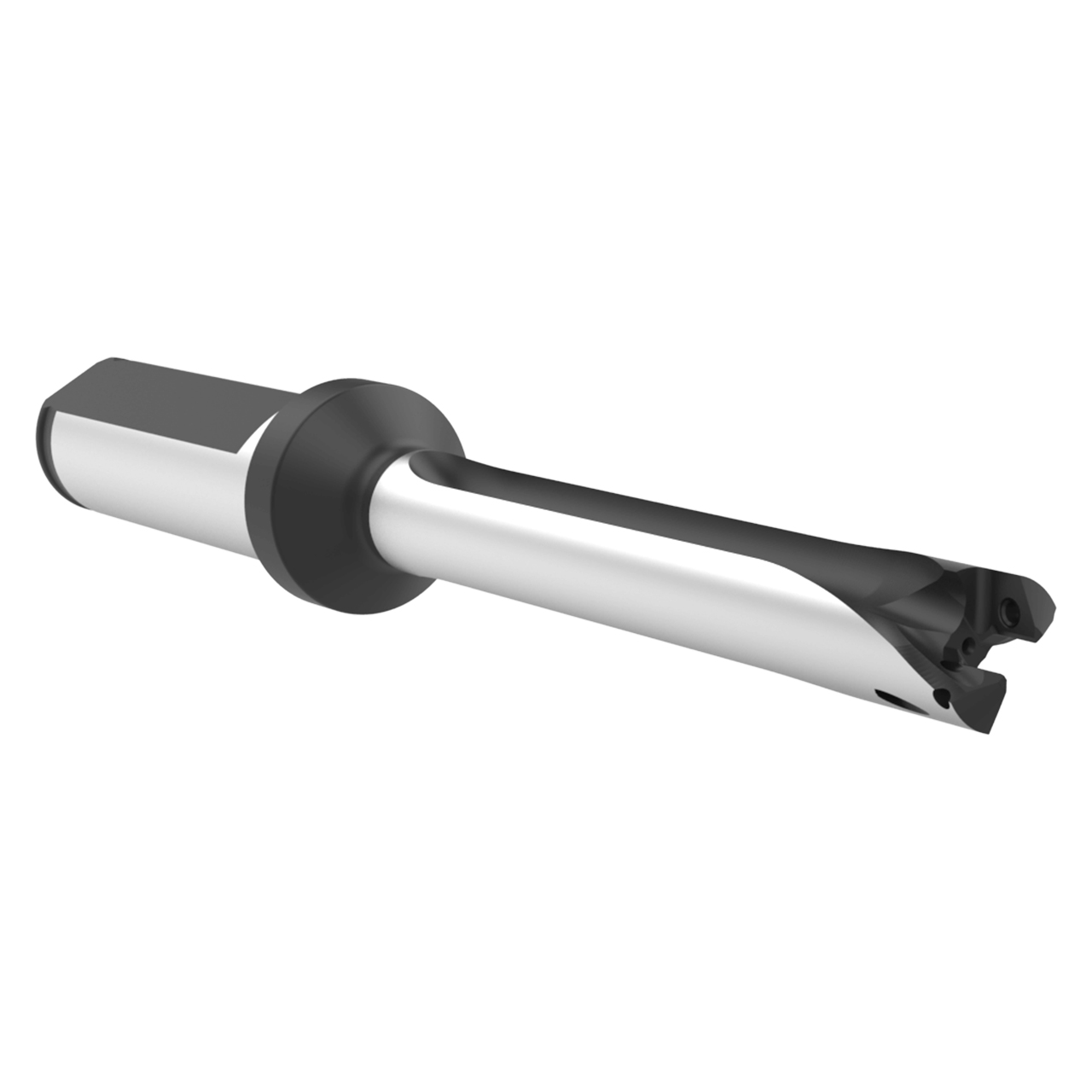

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0513S-20FM |
| Body Length (Inch) | 3.83" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (mm) | 70mm |
| Flat | Yes |
| Length Type | 5xD |
| Maximum Diameter (Inch) | 0.5511" |
| Maximum Diameter (mm) | 13.99mm |
| Minimum Diameter (Inch) | 0.5118" |
| Minimum Diameter (mm) | 13mm |
| Overall Length (mm) | 149.4mm |
| Series | 13 |
| Shank Diameter (mm) | 20mm |
| Shank Length (mm) | 50mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 99.4mm |
