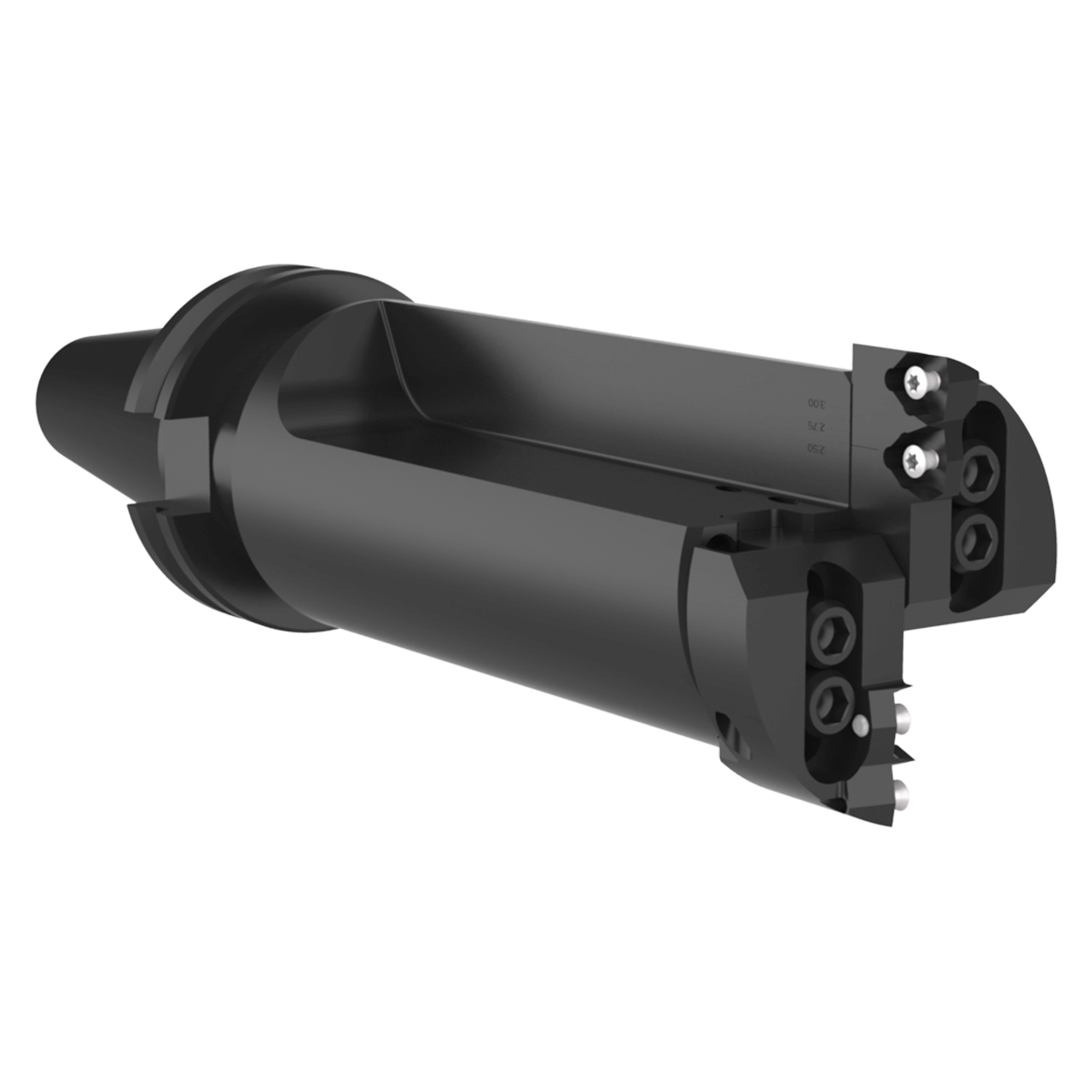

Allied Machine and Engineering OP2-1S-CV40 | 3.000" Diameter x 4-43/64" Drill Depth CV 40 OP2 Indexable Insert Drill

$1,483.00 $1,408.85
(You save $74.15)
Brand:
Allied Machine and Engineering
Drill Diameter (Inch):
2-1/2"
Drill Diameter (Decimal Inch):
2.5000"
Drill Diameter (mm):
63.50mm
Maximum Drill Depth (Inch):
4-43/64"
Maximum Drill Depth (Decimal Inch):
4.6700"
Maximum Drill Depth (mm):
118.67mm
Shank Type:
CV 40
Through Coolant:
Yes
interval quantity:
1
SKU:
23036734
UPC:
Weight:
6.11 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Opening Drill is an extremely effective tool designed to enlarge existing holes.

Features:

  • Cartridges can be easily replaced to protect the drill body investment
  • Replaceable cartridges mean less downtime in the event of a tool crash
  • Cartridges use the same insert in all pockets lowering inventory levels

Product Specifications
# MFGOP2-1S-CV40
Drill Depth (Inch)4-43/64"
Gage Length (Inch)6-7/8"
Maximum Diameter (Inch)3.000"
Minimum Diameter (Inch)2.500"
Quantity of Inserts4
Shank TypeCV 40
Flute TypeStraight
Length TypeShort
SeriesOP2
Insert PrefixOP-05T308
