Product Specifications

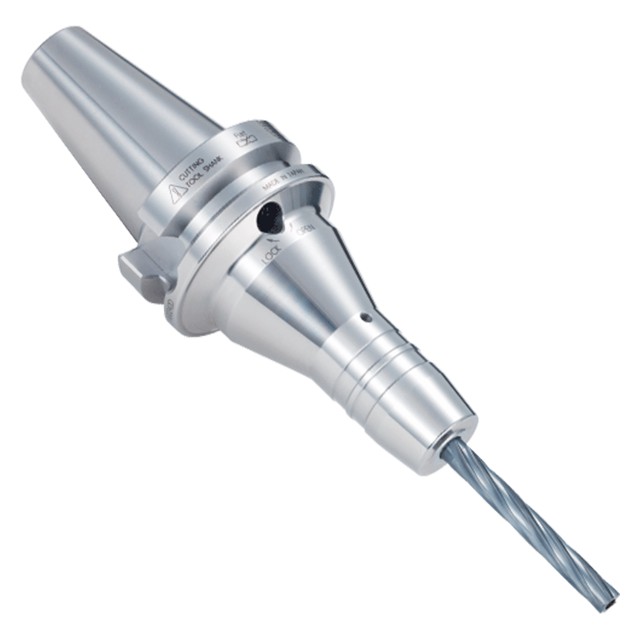

| Catalog Number | BBT40-HDC8-90 |
| Gage Length (mm) | 90.00mm |
| Maximum Body Diameter (mm) | 45.00mm |
| Clearance Length (mm) | 44.00mm |
| Insert Rake Angle (Inch) | 44.0000" |
| Nominal Clamping Size (mm) | 8.00mm |
| Nominal Clamping Size (Inch) | 0.3150" |
| Body Diameter (mm) | 45.00mm |
| Nose Diameter (mm) | 28.00mm |
| Taper Type | BBT40 |
| Milling Chuck Series | HDC8 |
| Product Type | Hydraulic Chuck |
