Product Information

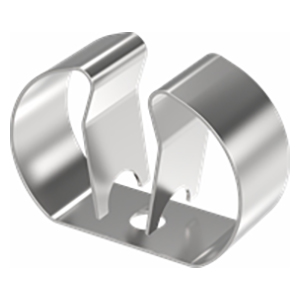

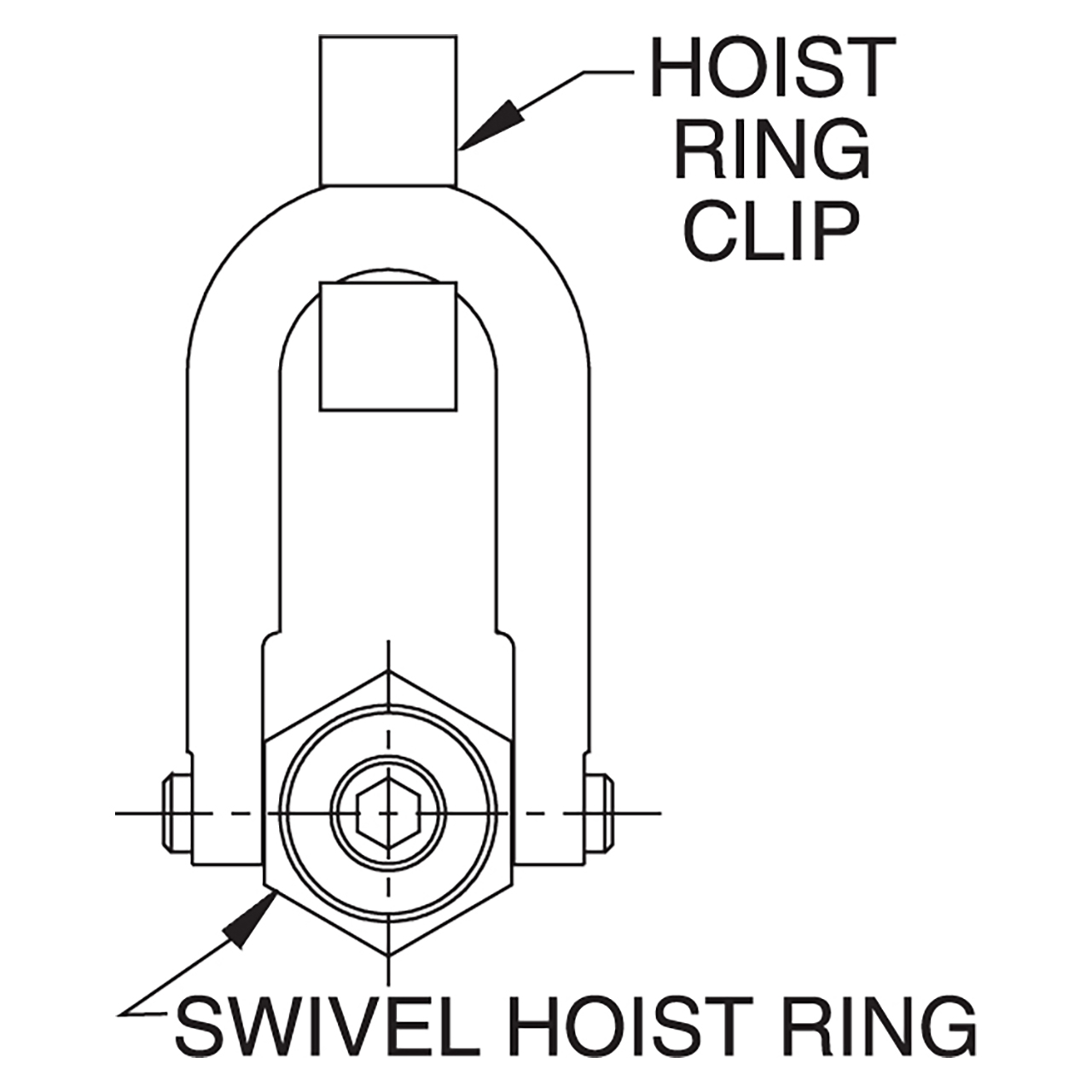

Handy hold-down clip to keep Swivel Hoist Rings, Side-Pull Hoist Rings, and Safety Hoist Rings from rotating when not in use. Available in two sizes – one for ring diameters from 3/8" to 5/8", the other for ring diameters from 3/4" to 1-1/16".
Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Spring Steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
Parts Specification

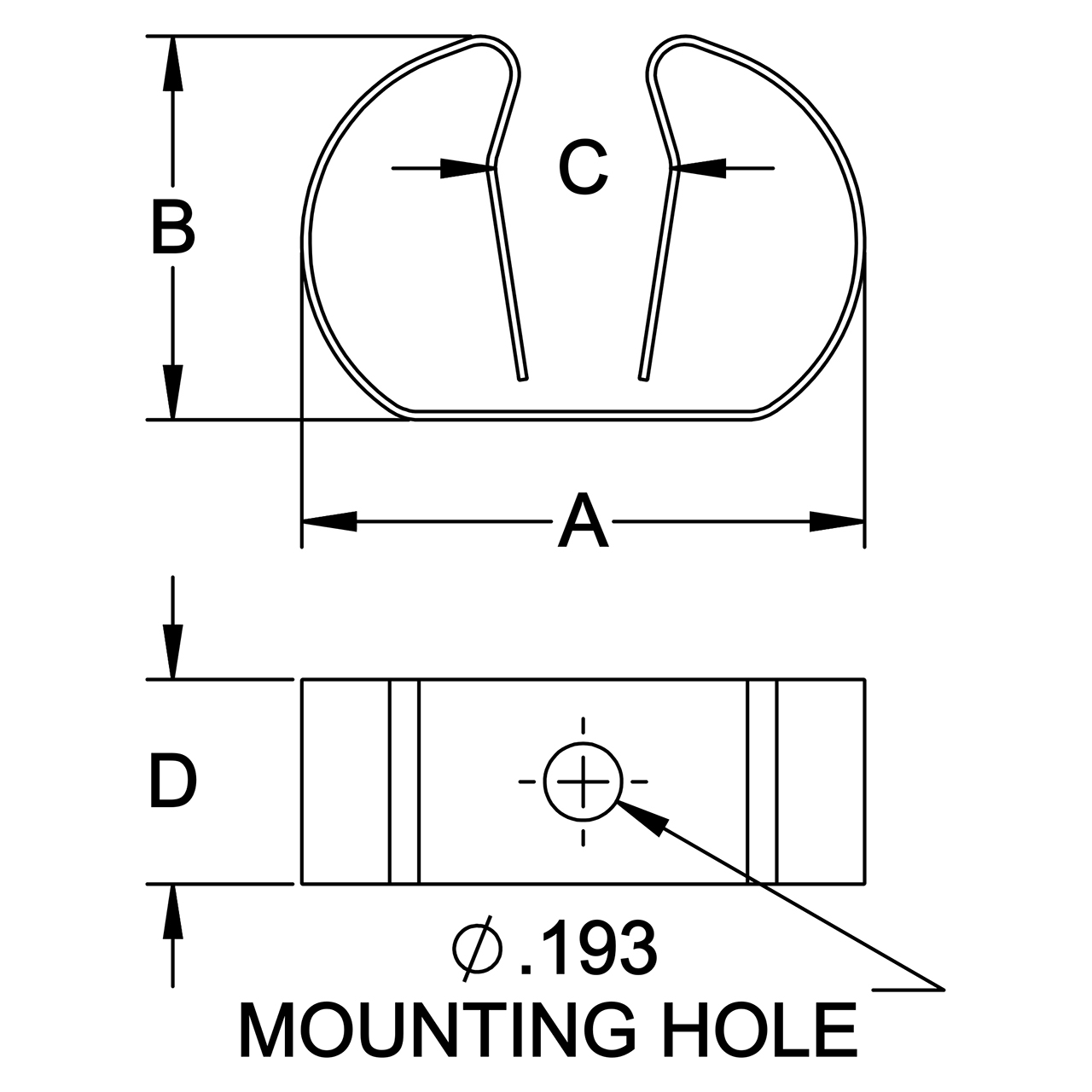

| Part Number | FITS RING DIAMETER | A ±.050 | B ±.050 | C ±.050 | D |
| CL-1-HRC-PACKOF2 | 3/8, 7/16, 5/8 | 1-9/32 | 15/16 | 5/16 | 1/2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
