Ball Detents
Press-in receptacle that provides a perfect mating hole for a Ball Plunger. The 90° point provides smooth detent action and reliable retention. These hardened receptacles resist side loads to prevent wear to the parent material. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 440 Stainless Steel | - | Heat Treated | Yes | Yes |
Parts Specification

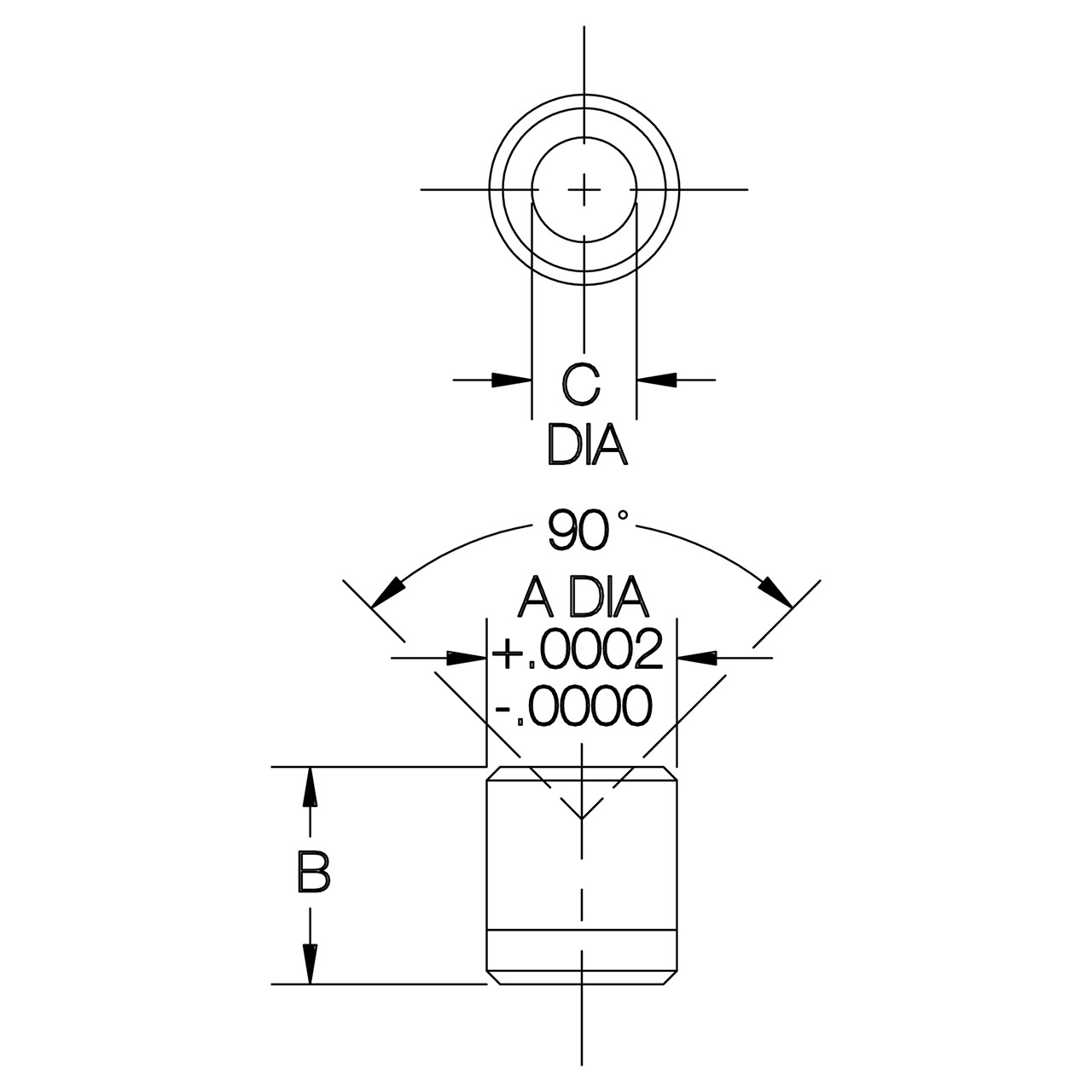

| For Ball Plungers With Body Thread | A Diameter | B | C Diameter |
| 5/8-11, M16 | 0.5472 | 5/8 | 0.330 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
5/8-11"
Diameter (Inch):
21/64"
Diameter (Decimal Inch):
0.3300"
Diameter (mm):
8.38mm
