Product Information

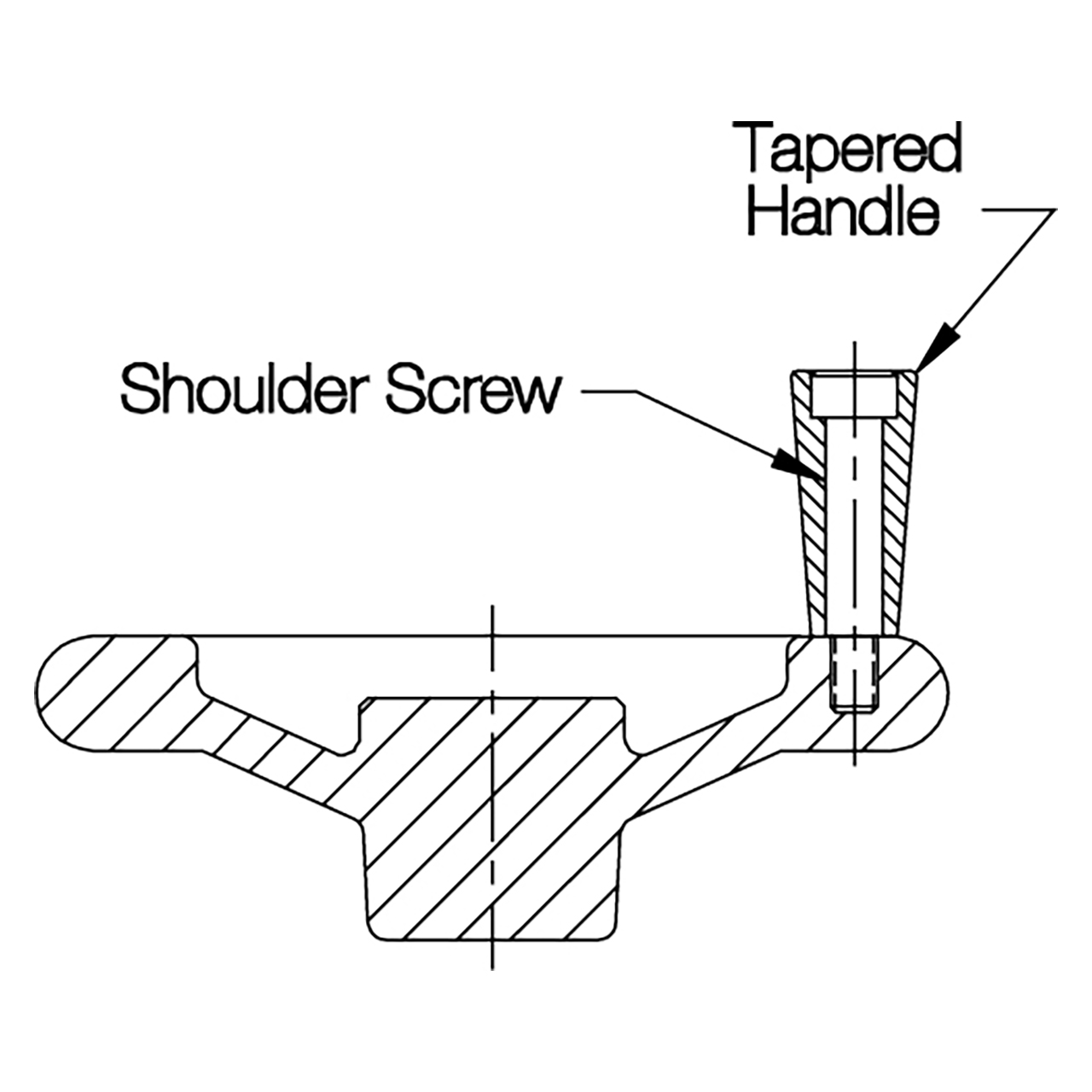

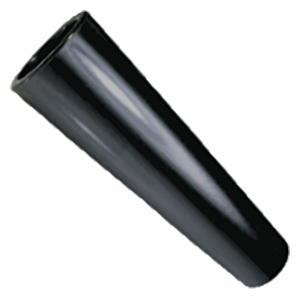

Heavy-duty design that makes an excellent grasp handle or machine shift lever. The version shown here is made of solid phenolic plastic, with a counterbored through-hole. This type can be used as a rotating handle by installing with a Shoulder Screw. Choice of three handle sizes. Made in USA.
Application Information

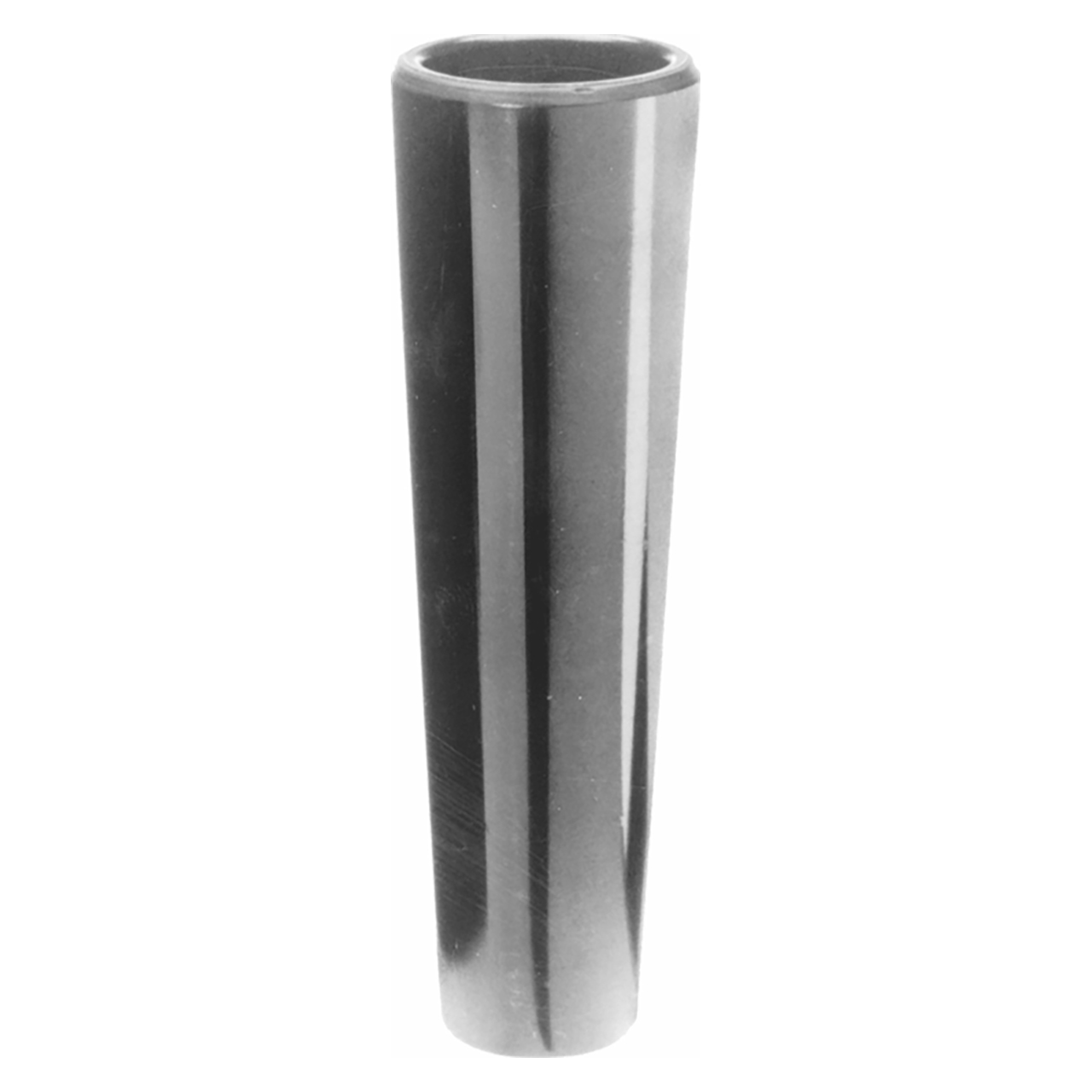

Available Sizes
3/8 Dia 3/8 Dia 1/4 Dia
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification
| Part Number | A DIA | B | C DIA | D DIA NOMINAL | D DIA ACTUAL | E |
| CL-10-PH-PACKOF2 | 1 | 2-9/16 | 5/8 | 1/4 | .251 / .256 | 5/8 |
