Product Information

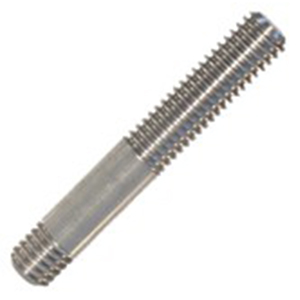

Fixture Studs have a thread-locking interference thread at the bottom end to install permanently in a fixture plate. These small thread sizes are designed specifically for mini-size stainless clamp straps. Available in thread sizes from #10-32 to 3/8-16, each in a choice of several lengths. Made in USA.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Fixture Studs | 300-Series Stainless Steel | - | Passivated | ✔ | ✔ |
Parts Specification

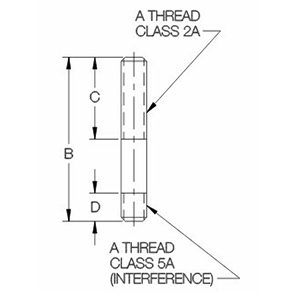

| Part Number | A THREAD | B | C | D |
| CL-11415-PACKOF2 | #10-32 | 1-1/2 | 3/4 | 7/32 |
