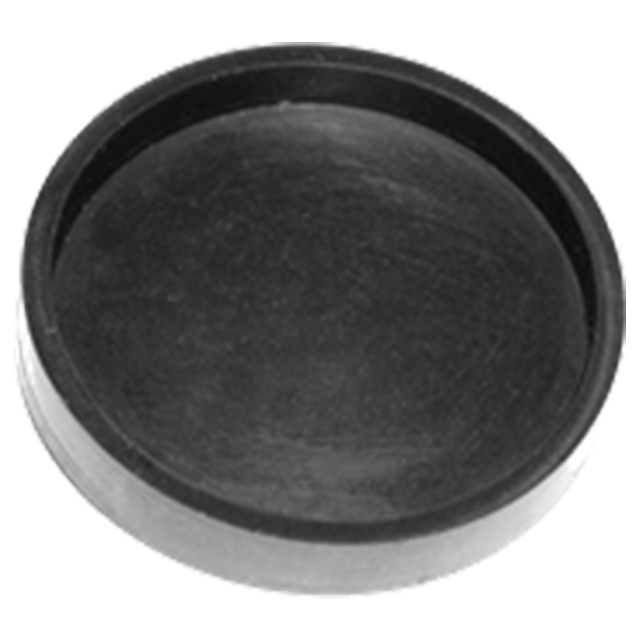

Pad Covers
Pad Covers fit over the bottom of the Leveling Feet and Stud Leveling Feet. These PVC covers provide increased grip to prevent sliding on sloped or uneven surfaces. They also provide cushioning to reduce transmitted machine vibrations and walking. Please note, rated leveling-foot load capacity is reduced to prevent damage to the cover.
Application Information
Pad Cover installed on a Stud Leveling Foot
Pad Covers help prevent sliding on sloped or uneven surfaces.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Polyvinyl chloride thermoplastic | - | - | Yes | Yes |
Parts Specification
| Fits Leveling Feet (Inch) | A Diameter (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | Load Rating (lbs) |
| 3/4-10 and M20 | 3-1/4" | 0.72" | 3" | 1/8" | 1800 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
