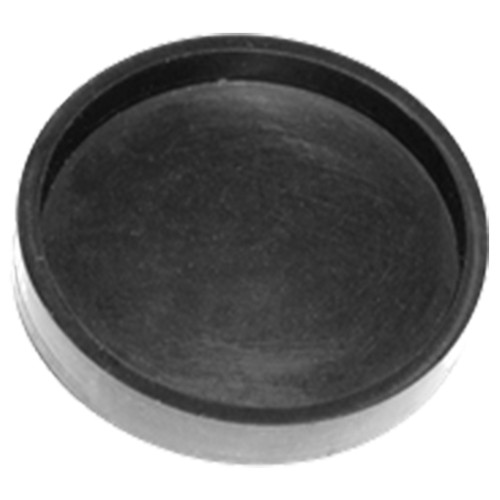

Pad Covers fit over the bottom of the Leveling Feet and Stud Leveling Feet. These PVC covers provide increased grip to prevent sliding on sloped or uneven surfaces. They also provide cushioning to reduce transmitted machine vibrations and walking. Please note, rated leveling-foot load capacity is reduced to prevent damage to the cover.
Pad Cover installed on a Stud Leveling Foot
Pad Covers help prevent sliding on sloped or uneven surfaces.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Polyvinyl chloride thermoplastic | - | - | Yes | Yes |
| Fits Leveling Feet (Inch) | A Diameter (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | Load Rating (lbs) |
| 5/8-11 and M16 | 2-3/4" | 0.52" | 2.47" | 1/8" | 1200 |
