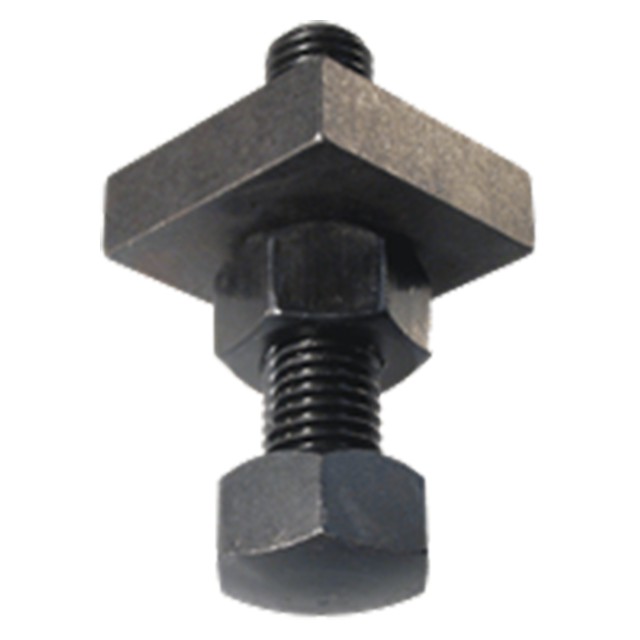

Jig Feet Leveling Assemblies
Heavy-duty leveling assembly includes a radius-head screw, tapped plate, and hex nut. Made in USA.
Application Information
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged in the standard plate. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | H (Inch) | Load Rating (lbs) |
| 1/2-13" | 4" | 7/8" | 1/2" | 1-3/4" | 2" | 0.53" | 4200 lbs |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
1/2-13"
Ships:
From Manufacturer
