Carr Lane CL-29-SHA-5 | 3/4-10 Thread Slotted-Heel Clamp Strap

Slotted-Heel Clamp Straps

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

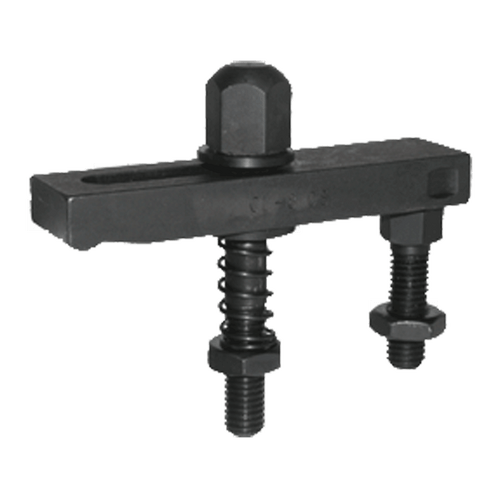

Assembly with Acorn Nut & Spherical Washer (-5)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:

• Acorn Nut
• Spherical Washer
• Clamping Stud
• Clamp Spring
• Flat Washer
• Jam Nut
• Clamp Rest

Material

Parts Specification
